Name: Dahua SD22404DB-GNY 4MP 4x PTZ IP Camera – Face Detection, IK10, PoE
Brand: Dahua
SKU: SD22404DB-GNY
Availability: InStock

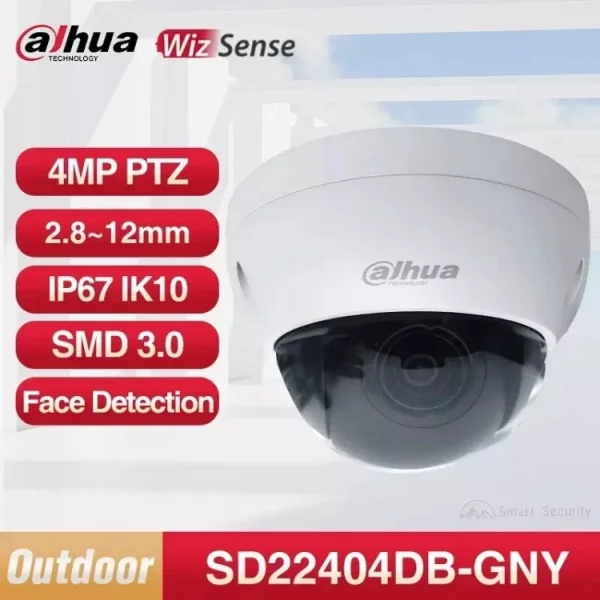

Dahua SD22404DB-GNY 4MP 4x PTZ IP Camera

Dahua SD22404DB-GNY 4MP 4x PTZ IP Camera – Face Detection, IK10, PoE

£245.00

Availability: 5 in stock SKU: SD22404DB-GNY Categories: CCTV, IP Cameras Brand: Dahua

Dahua SD22404DB-GNY is a rugged 4MP IP PTZ camera with 4x optical zoom, Starlight, SMD 3.0, face detection, PoE support, and IK10/IP66 protection.

Description
Technical Specification

Description

The Dahua SD22404DB-GNY 4MP 4x PTZ Network Camera delivers exceptional video surveillance performance in demanding environments. With a 1/2.8” CMOS sensor and 4x optical zoom, this compact PTZ camera captures clear, high-resolution images even in low-light conditions thanks to Starlight technology. It supports real-time 25/30fps@4MP, intelligent features like face detection and SMD 3.0 (Smart Motion Detection), and is ideal for perimeter security, retail, and commercial surveillance.

Engineered for durability, the SD22404DB-GNY features IK10 vandal resistance and IP66 weatherproof housing, making it suitable for both indoor and outdoor installations. The camera is equipped with PoE for simplified power and network connectivity, and offers fast 100°/s pan speeds for quick subject tracking.

Key Features

4MP 1/2.8” CMOS sensor for sharp image clarity
4x optical zoom for detailed surveillance
25/30fps @ 4MP resolution
Starlight low-light imaging technology
Face detection and SMD 3.0 for smart analytics
Supports Power over Ethernet (PoE)
IP66 weatherproof and IK10 vandal resistant
Max pan speed: 100°/s
6000V lightning protection

Applications

Retail stores and shopping centres
Perimeter and fence line security
Public transport stations
Warehouses and logistics centres
School and campus surveillance

Camera

Image Sensor

1/2.8″ CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

512 MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6

Lens

Focal Length

2.8 mm–12 mm

Max. Aperture

F1.6–F3.0

Field of View

H: 90.3°–29.4°; V: 48.5°–16.6°; D: 105.7°–33.6°

Optical Zoom

4×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

1.5 m (4.92 ft)

Iris Control

Fixed

DORI Distance

Detect

Observe

Recognize

Identify

240 m (787.40 ft)

94.8 m (311.02 ft)

48 m

(157.48 ft)

24 m

(78.74 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

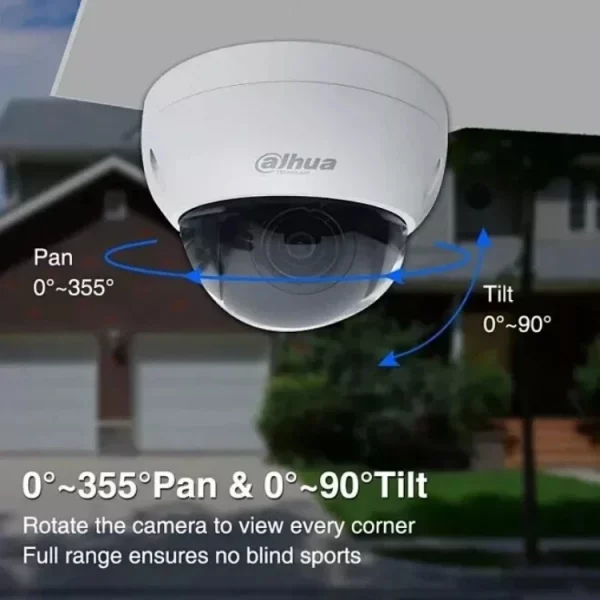

Pan/Tilt Range

Pan: 0°–355°
Tilt: 0°–90°

Manual Control Speed

Pan: 0.1°/s–100°/s

Tilt: 0.1°/s–60°/s

Preset Speed

Pan: 100°/s; Tilt: 60°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

Idle Motion

Pattern; Preset; Tour

PTZ Protocol

SD Pelco-P/D(Auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

Face Detection

Supports face detection, face track, snapshot, and face enhancement;
Supports face cutout: Face, one-inch photo;
Capturing strategies include real-time capturing and quality first.

SMD

Yes

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296@25fps); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1(704 × 576); CIF(352 × 288); VGA(640 × 480)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30

fps)

Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

Sub stream 2: 720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 2816Kbps – 13056Kbps H.265: 1024Kbps – 7936Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Yes

Defog

Electronic defog

Digital Zoom

16×

Image Rotation

180°

S/N Ratio

≥ 55 dB

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS

Interoperability

ONVIF(Profile S&G&T); P2P; CGI; SDK

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512 GB); NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions.

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android

Certification

Certifications

CE: CE-LVD: IEC 62368-1/ CE-EMC/EN 55032/EN IEC 61000-3-2/EN55024/EN55035/EN50130-4

FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Port

Alarm Linkage

Capture; preset; tour; pattern; recordings; alarm digital input; send email

Alarm Event

Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

12 VDC, 1 A ± 10%
POE (802.3af)

Power Consumption

Basic: 2.3 W
Max.: 6.1 W

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

≤ 95%

Protection

IP66, IK10

Structure

Product Dimensions

89 mm × Φ122 mm (3.50″ × Φ4.80″)

Net Weight

0.5 kg (1.10 lb)

Gross Weight

0.7 kg (1.54 lb)

The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
