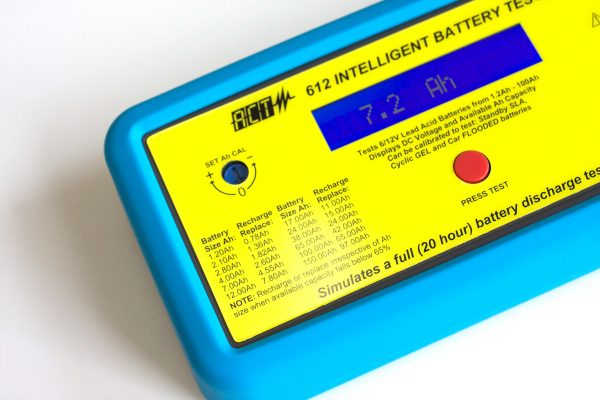

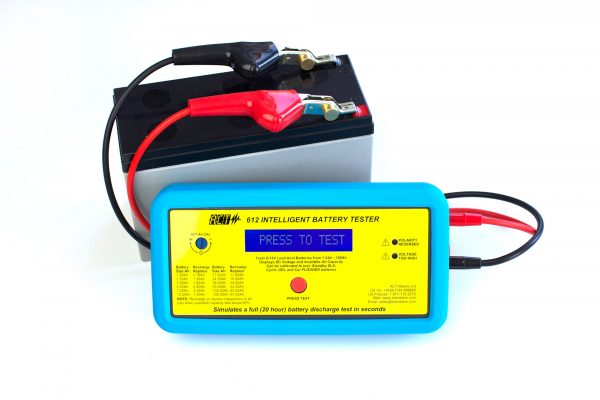

ACT 6/12V Intelligent Battery Tester ACT/612. The ACT 6/12V Intelligent Battery Tester ACT/612 is a dual-voltage battery capacity tester designed for rapid testing of 6V and 12V lead acid batteries. Using advanced pulsed load analysis, it simulates a full 20-hour discharge test in seconds to accurately measure available Ampere-hour (Ah) capacity, battery voltage and overall battery condition. Suitable for AGM (SLA), GEL and Flooded (WET) battery technologies, it is widely used across fire and security, UPS, mobility and leisure applications.

It quickly evaluates the available capacity and voltage of lead acid batteries without carrying out a lengthy discharge test. Its unique Ah Calibration Control allows accurate testing across different lead acid battery technologies, helping identify batteries that require recharging or replacement before failure.

Features

• Tests 6V and 12V SLA (AGM), GEL and Flooded (WET) lead acid batteries
• Simulates a 20-hour (C20) battery discharge test in seconds
• Tests 6V batteries from 1.2Ah to 10Ah and 12V batteries from 1.2Ah to 100Ah
• Tests 12V batteries up to 150Ah
• Displays battery voltage and available Ampere-hour (Ah) capacity
• Advanced pulsed load analysis removes surface charge for accurate capacity measurement
• Ah results automatically consider battery temperature and state of charge
• Unique Ah Calibration Control supports AGM, GEL and Flooded battery technologies
• Continuous testing with ultra-low heat generation
• Reverse polarity protection with LED indication
• Over-voltage protection up to 30VDC with LED indication
• Replaceable plug-in test leads
• High-impact ABS housing with protective holster
• Supplied with Certificate of Calibration
• Enables rapid battery condition assessment for maintenance and servicing
• Operating voltage: 6V and 12V DC
• Simulated 20-hour (C20) load test to 10.50VDC
• Blue back-lit LCD display
• Maximum input voltage: 15VDC
• Over-voltage protection: 30VDC (10 seconds)
• Battery replacement threshold: below 65% rated capacity
• Flat battery warning: 6V <5.30VDC, 12V <10.50VDC
• DC voltage accuracy: ±2% of displayed reading
• Ah accuracy: ±5% (fully charged premium C20-rated SLA batteries at 20–25°C)
• Applied pulse load: 6A (1.2Ah–7Ah), 18A (8Ah–100Ah)
• Dimensions: 84 × 170 × 41mm (including holster)
• Warranty: 12 months RTB
