Apollo SA4700-300APO Soteria Intelligent 1 DIN-Rail Switch Monitor Module
Original price was: £77.89.£66.49Current price is: £66.49.
Key Features – SA4700-300APO
- Improved design for ease of wiring, meaning faster installation
- Contains controllable isolator
- Address range: 1 – 254
- Five pre-configured modes, including compatibility mode from XP95/Discovery to CoreProtocol systems
- Configurable input styles
- Earth fault monitoring
- Description
Description

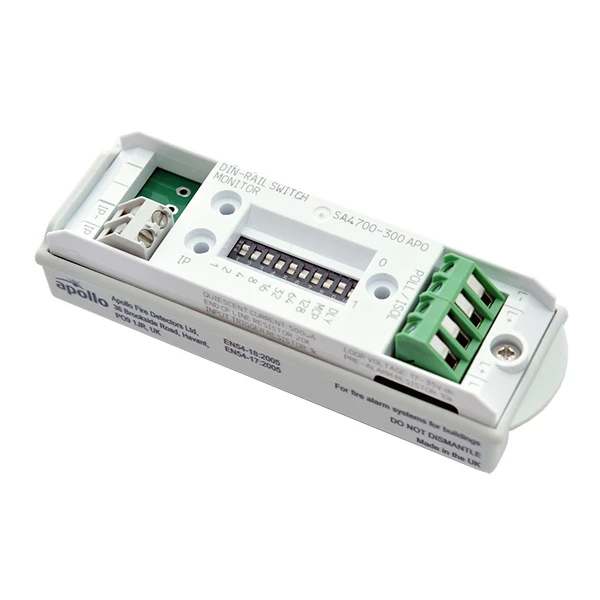

Apollo Intelligent DIN-Rail Switch Monitor
Part Number: SA4700-300APO
The Apollo Intelligent DIN-Rail Switch Monitor is designed to monitor the state of one or more single pole, volt-free contacts connected on a single pair of cables and to report the status.
It has a selectable status reporting delay, making it suitable for monitoring flow switches.
Product Specification
| Code: | SA4700-300APO |
| Description: | Apollo Intelligent DIN-Rail Switch Monitor Module |
| Dimensions: | W:102mm x L:33mm x D:33mm |
| Colour: | White |
| Relay output contact rating: | 1A (tested @ 30V ac) |
| Standards: | EN54-17, EN54-18 |
| Approvals: | SBSC, FG, LPCB, BOSEC, VdS, CPR |
| Protocol voltage: | 5V – 13V peak to peak |
| Quiescent current: | 500μA (tested at 24V dc) |
| Supply voltage: | 17 – 35V dc |
| Humidity: | 0 – 95% (no condensation or icing) |
| Operating temperature: | -40 to 70°C |
| Warranty: | 10 year |
| Weight: | 46g |
