Apollo 55000-001APO XP95 Series Isolating Open-Area Sounder 100dB A, Indoor Use, EN 54-3 Compliant, Red
Original price was: £60.99.£49.99Current price is: £49.99.
Key Features of the 55000-001APO |
|---|

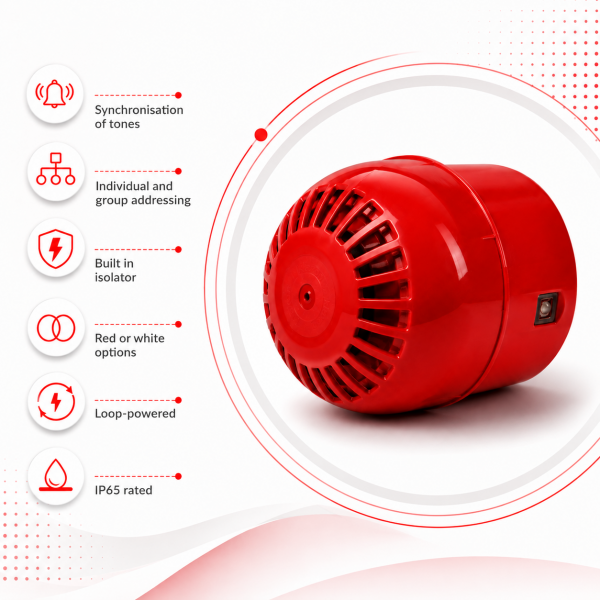

| > Self-test fault monitoring > Choice of tones on standard device: Apollo, Slow Whoop and DIN > Two volume settings 92dB(A) and 100dB(A) > Synchronisation of tones > Individual and group addressing > Built in isolator > Red or white options > Loop-powered > IP65 rated |
- Description
Description

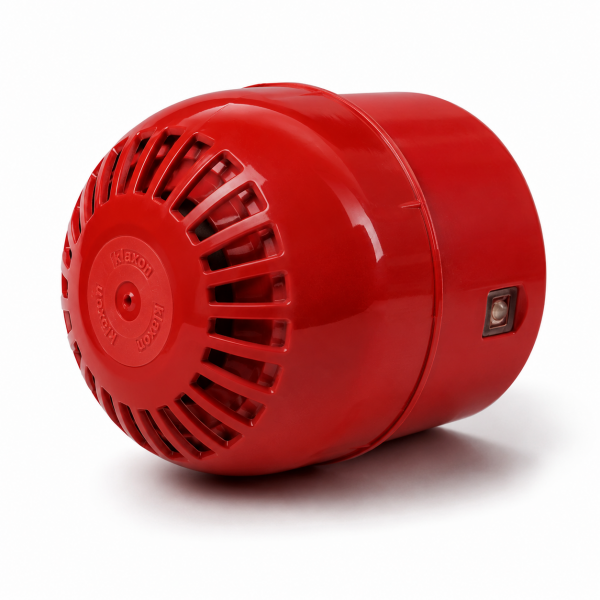

Apollo Intelligent Open‑Area Sounder (Red) – 55000‑001APO
XP95 & Discovery Compatible Loop‑Powered Fire Alarm Sounder
The Apollo Intelligent Open‑Area Sounder (55000‑001APO) is designed for use in open areas where clear, reliable audible warning is essential. Fully compatible with Apollo XP95, Discovery, and CoreProtocol systems, this loop‑powered device delivers high performance without the need for an external power supply.
Ideal for commercial and industrial fire alarm installations, the sounder provides synchronised operation, flexible addressing, and efficient loop‑powered performance.
Key Features
- Compatible with Apollo XP95, Discovery & CoreProtocol
- High sound output of 100dB(A)
- Loop‑powered – no external power supply required
- Individual and group addressing capability
- Synchronised operation via control panel
- Simple DIL switch addressing
- Designed for open‑area applications
- Red housing for clear fire alarm identification
Electrical Specifications
- Operating Voltage: 17–28V DC
- Loop Powered: Yes
- Polarity Sensitive: Yes
- Current Consumption:
- 5mA (Sounder)
- 8mA (Sounder Beacon variant)
- Sound Output: Nominal 100dB(A)
Many control panels can typically support up to:
- 20 sounders per loop
- 15 sounder beacons per loop
Note: The maximum number of devices per loop should always be confirmed using the Apollo Loop Calculator.
Operation & Performance
The Intelligent Open‑Area Sounder is designed for environments where multiple alarm devices may be audible within the same space. For this reason, all connected sounders can be synchronised directly from the control panel to ensure uniform alarm signalling throughout the building.
The device offers the same functional flexibility as Apollo Sounder Control Units (55000‑582 and 55000‑182 DIN‑rail version), allowing both individual and group control options.
Device Addressing
Addressing is configured using a DIL switch system:
- Individual Address Range: 1–126
- Group Address Range: 112–126 (selected via 4‑segment DIL switch)
- Devices using group addressing must have an individual address between 1–111
- If incorrectly addressed, a fault value of 4 will be transmitted
This flexible addressing system enables multiple sounders to be controlled simultaneously while maintaining individual device monitoring.
Mechanical Construction
The unit features a dedicated base for secure mounting and first‑fix wiring, simplifying installation and maintenance in open‑area applications.
Compatibility & System Requirements
- Compatible with control equipment using Apollo protocols only
- Full feature set available when connected to control panels with appropriate supporting software
- Backward compatible with XP95 and Discovery systems
Applications
- Commercial buildings
- Warehouses
- Offices
- Retail spaces
- Industrial environments
- Large open‑area fire alarm installations
