Description

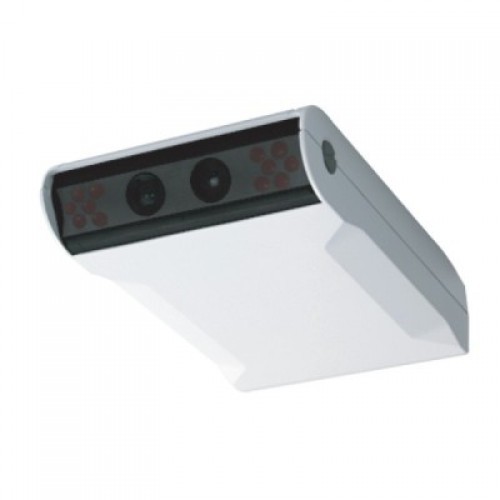

AVTECH AVM602ZVP/F36-S Security and Surveillance Camera Push Notification CCTV Security

Description
Type: Security and Surveillance Camera
Features: Push notifications, CCTV security
Suitable for residential and commercial surveillance needs, including monitoring of entryways, parking areas, and other key locations. For additional information or support, feel free to ask!

Specifications

• Image Sensor Type: 1/3″ HR color CCD
• Number of Pixels: 512(H) x 492(V) (NTSC) / 512(H) x 582(V) (PAL)
• Resolution: 480 TV Lines
• Min. Illumination Daytime: 0.17 Lux / F2.0 (IR LED OFF)
• Electronic Shutter Speed Range: 1/60 (1/50) to 1/100,000 sec
• Signal-to-Noise Ratio (S/N Ratio): More than 48dB (AGC off)
• Infrared (IR) LED Number of Units: 12
• Day & Night Function: Yes
• Smart Light Control: Yes
• Lens Type: Fixed
• Focal Length: f3.6mm
• Aperture: F2.0
• Lens Angle: 92.6°
• Video Output Type: 1.0 Vp-p composite
• Impedance: 75Ω
• PIR Detection Range: 40° wide angle
• PIR Detection Distance: Up to 5m at 2m height (under 25°C)
• DCCS Support: Yes
• Operating Temperature Range: 0℃ ~ 40℃ (32℉~104℉)
• Storage Temperature Range: 0℃ ~ 40℃ (32℉~104℉)
• Humidity: 85%
• Power Source Voltage: DC12V
• Current Consumption IR OFF: 110mA
• Current Consumption IR ON: 260mA
• Tolerance: ±10%
• Dimensions Width: 90 mm
• Dimensions Height: 145 mm
• Dimensions Depth: 32 mm
• Weight: 220 g
