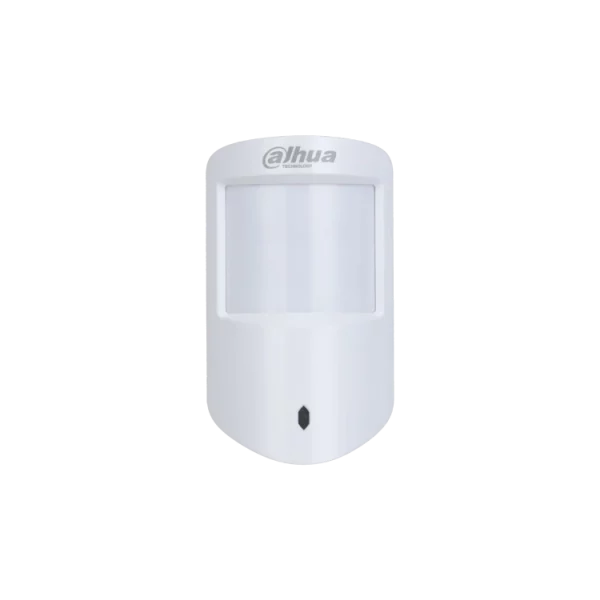

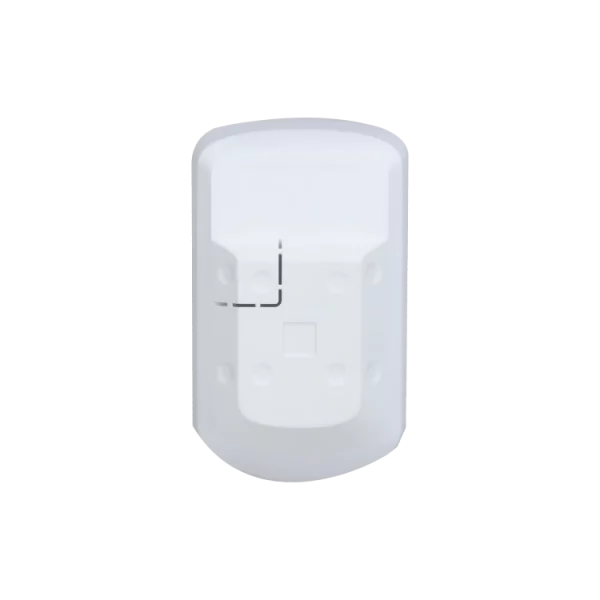

Dahua DA-ARD1233-W2-868 AirShield Wireless PIR Detector – Pet Immune, 868MHz

£54.99

Availability: 5 in stock SKU: DA-ARD1233-W2-868 Category: Brand:

Dahua DA-ARD1233-W2-868 AirShield wireless PIR motion detector with pet immunity, temperature sensing, and reliable two-way communication.

Description

The Dahua DA-ARD1233-W2-868 AirShield Wireless PIR Detector delivers reliable motion detection for Dahua AirShield alarm systems. Featuring pet immunity, this sensor distinguishes between human movement and small animals, reducing false alarms in pet-friendly environments.
Its auto temperature compensation ensures consistent performance in varying conditions, while 3-level sensitivity adjustment allows tailored detection settings. With signal strength monitoring, low battery alerts, and built-in temperature measurement, the detector maintains operational reliability.
Using frequency-hopping technology and two-way communication, it offers stable, interference-resistant connectivity. Cloud update support with automatic recovery ensures the device remains up-to-date without manual intervention.

Key Features

  • Pet immunity to prevent false alarms from small animals
  • Auto temperature compensation for accurate detection
  • 3-level sensitivity adjustment for customised settings
  • Signal strength detection for optimal placement
  • Low battery alarm for uninterrupted operation
  • Integrated temperature measurement
  • Frequency hopping and two-way communication for stability
  • Cloud updates with automatic recovery from failure

Applications

  • Residential security systems
  • Pet-friendly homes
  • Offices and commercial premises
  • Retail stores and warehouses
Model NumberDA-ARD1233-W2-868
Port
Indicator Light1 x green alarm indicator
Button1 x power button
Function
Tamper AlarmYes
Remote UpgradeCloud Update
Test ModeYes
Low Battery AlarmYes
SearchSignal Strength Detection
Wireless
Carrier Frequency868.0 MHz–868.6 MHz
Communication DistanceUp to 1,600 m (5,249.34 ft) in an open space
Communication MechanismTwo-way
Frequency HoppingYes
Encryption ModeAES128
General
Power SupplyCR123A battery
Power ConsumptionMax. 120 mW
Operating Temperature–10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity10%–90% (RH).
Product Dimensions104.0 mm × 60.0 mm × 50.0 mm (4.09″ × 2.36″ × 1.97″) (L × W × H)
Packaging Dimensions135.0 mm × 98.5 mm × 56.8 mm (5.31″ × 3.88″ × 2.24″) (L × W × H)
InstallationWall mount
Net Weight100 g (0.22 lb)
Gross Weight170 g (0.37 lb)
CertificationsCE
Battery Life4 years
CasingPC + ABS
Temperature
Measuring Range–15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
Measuring Precision± 1 °C (± 33.8 °F)
Resolution1 °C (33.8 °F)
Specification
DetectionPIR
SensorDual-element low-noise PIR sensor
Detection Range12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)
Detection Speed0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
Pet Immunity Level≤ 18 kg (39.68 lb)
White Light Resistance Level2000 lx
Two-way Digital Temperature CompensationYes, no attenuation of detection in high temperature
Sensitivity3 Levels Adjustable
