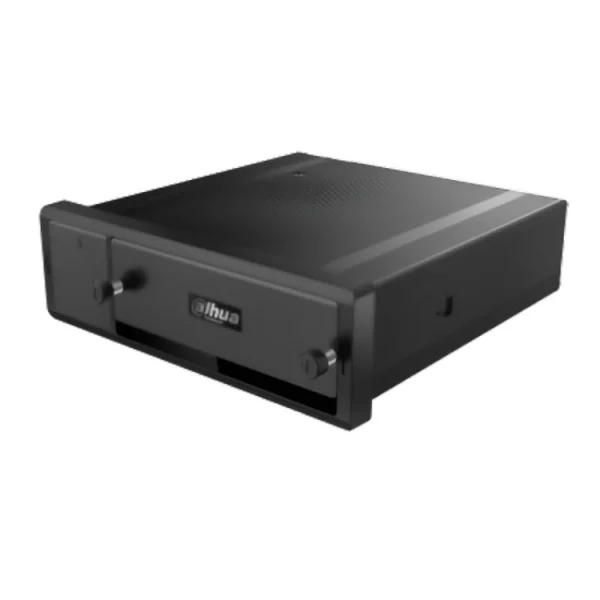

Dahua MXVR4104-GFWI 4CH AI Mobile DVR H.265 Hybrid Input, ADAS, GPS

£1,398.99

Availability: 5 in stock SKU: DHI-MXVR4204-GFWI Category: Brand:

Dahua MXVR4104-GFWI 4-channel AI mobile video recorder with H.265, hybrid camera input, GPS tracking, and driver safety AI features like ADAS and DSM.

Description

The Dahua MXVR4104-GFWI is a high-performance 4-channel AI mobile video recorder designed for vehicle surveillance and fleet management. Supporting both analog and IP cameras via hybrid penta-brid input (CVI, AHD, TVI, CVBS, IP), this rugged DVR provides maximum flexibility for transport and mobile monitoring applications.

It features intelligent AI functions including Driver State Monitoring (DSM), Advanced Driver Assistance Systems (ADAS), Blind Spot Detection (BSD), and face recognition. With smart H.265 compression, the unit delivers crystal-clear footage while saving bandwidth and storage.

This mobile DVR supports 1x 2.5” pluggable HDD/SSD (up to 2TB) and 1x SD card (up to 256GB) for redundant storage. Built-in GPS/GLONASS modules provide accurate real-time tracking, while alarm I/O and network connectivity offer seamless integration with central systems. Its anti-vibration, wide-temperature-resistant build ensures reliable operation in demanding environments.

Key Features

  • Hybrid Camera Input: 4CH analog + 4CH IP, supports CVI, AHD, TVI, CVBS, and IP formats
  • AI Detection: DSM, ADAS, BSD, face recognition for improved road safety
  • Video Compression: Smart H.265, H.264 for efficient storage and quality
  • Storage: 1x 2.5” HDD/SSD (max 2TB) + 1x SD card (max 256GB)
  • Rugged Design: Anti-vibration, wide temp range (-30°C to +70°C)
  • Built-in GPS/GLONASS: Real-time vehicle tracking and location logging
  • Connectivity: Dual LAN, USB, RS-232/485, alarm input/output
  • Event Alerts: Motion detection, collision, overspeed, tampering
  • Power Input: 6–36VDC with low power mode
  • Fan Cooling: Built-in cooling fan for thermal stability

Applications

  • Public bus and school bus video surveillance
  • Taxi and rideshare vehicle monitoring
  • Police and emergency vehicle fleet recording
  • Logistics and cargo transport tracking
  • Harsh environment remote video applications

Video and Audio

Analog Camera Input

4 HDCVI/AHD/TVI/CVBS cameras

IP Camera Input

4 IP cameras (extendable via PoE switch)

Video Compression

H.265/smart H.265/H.264/smart H.264

Dual-stream

Support (up to D1 encoding for sub stream)

Video Frame Rate

PAL: 1– 25 fps

NTSC: 1 – 30 fps

Video Output

1-ch CVBS1-ch VGA

Output resolution: 800×600/1280×1024

Display Split

1/4/8/9

Audio Compression

G.711A/G.711U/PCM

Network

Band

Eurasian Version

Latin American Version

LTE-FDD: B1/3/5/7/8/20

LTE-TDD: B38/40/41

WCDMA: B1/5/8

GSM/EDGE: B3/8

LTE-FDD:

B1/2 /3/4/5/7/8/28

LTE-TDD: B40

WCDMA: B1/2/4/5/8

GSM/EDGE: B2/3/5/8

Tx Power

Frequency Bands

Max. Tx Power

GSM850/EGSM900

33 dBm ±2 dB

DCS1800/PCS1900

30 dBm ±2 dB

WCDMA bands

23 dBm ±2 dB

LTE bands

23 dBm ±2 dB

Wi-Fi Frequency

2.4 GHz

Wi-Fi Protocol

802.11 b/g/n

AI

DSM

Supports drowsy driving, distracted driving, calling, no driver, wearing IR blocking sunglasses, smoking, lens tampering and unbelted alarms.

ADAS

Supports Lane Departure Warning, Forward Collision Warning and Headway Monitoring Warning.

BSD

Supports human, motor vehicle, and non motor vehicle detection and warning.

Face Recognition

Supports face attribute detection and face comparison.

Recording Playback

Recording Priority

Manual recording > alarm recording > motion detection recording > Timed recording

Recording Playback

1/4 channels

Backup

HDD/SSD, USB flash drive and network backup

Storage

HDD/SSD

1 × HDD/SSD (up to 2TB)

Heat Dissipation

Built-in fan cooling

SD card

1 × SD card (up to 256GB)

Alarm

General Alarm

Motion detection, video loss, video tampering, local alarm, camera offline

Abnormal Alarm

No HDD, HDD error, insufficient capacity, illegal login, battery low voltage, high temperature, rollover, collision, over speed, low speed, rapid turn, rapid speedup, sharp brake, network security exception, ACC off

Alarm Linkage

Log, record, snapshot, tour, buzzer, email, alarm output

Sensor

Gyroscope

Supports event detection and alarm such as rollover, collision, rapid speedup/slowdown/turn.

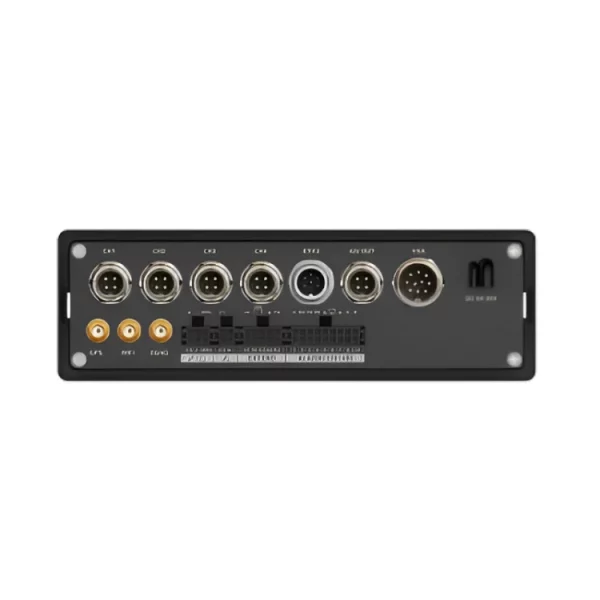

External Interface

Alarm Input

9 channels (Alarm 1–8 are local alarm input, Alarm 9 is pulse input)

Alarm Output

2 channels (1 relay out, 1 controllable 12VDC 0.5A out)

Audio Talk

Support

Pickup

1-ch, the audio will be overlaid on the first channel

RS-232

3

RS-485

1

CAN

N/A

USB

Front panel: 2 × USB 2.0

Rear panel: 1 × USB 2.0 from EXTEND port

Network Port

Front panel: 1 × 10M/100M RJ45

Rear panel: 1 × 10M/100M 6-pin aviation connector

Satellite Positioning

GPS/GLONASS

General

Power Supply

6–36 VDC

Power Consumption

8.4 W (without peripheral )

Low power consumption< 0.1W

Gross Weight

2.83 kg (6.24 lb) (with packages)

Product Dimensions

180 mm × 190 mm × 50 mm (7.0″ × 8.7″ × 2.0″)

Packaging Dimensions

308 mm × 293 mm × 123 mm (12.1″ × 11.5″ × 4.8″)

Operating Temperature

–30 °C to +70°C (–22 °F to +158 °F)

Operating Humidity

10% – 90%

Operating Altitude

5000 m

Installation

Embedded or bracket installation

Certifications

CE/FCC/E-mark/EN50155
