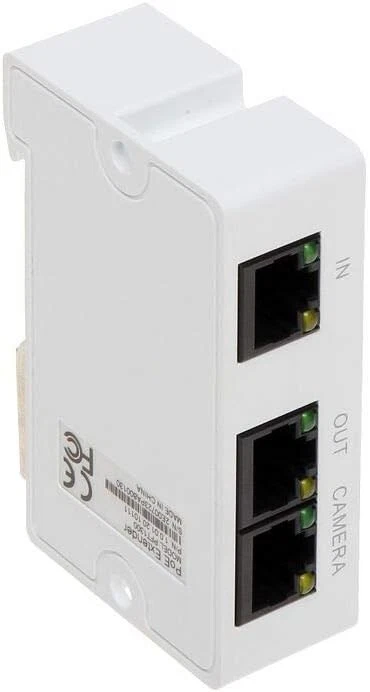

Dahua PFT1300 PoE Extender – 1 In/2 Out, 300m Long-Range Transmission
£45.99
The Dahua PFT1300 PoE Extender enables reliable power and data extension up to 300m, with 1 input and 2 outputs for IP cameras or cascade setups.
- Description
- Technical Specification
Description
The Dahua PFT1300 PoE Midspan Extender is a high-performance solution for extending both power and Ethernet data transmission beyond the standard 100m PoE limit. With 1 RJ45 PoE input and 2 RJ45 outputs, it supports seamless connections for IP cameras or an additional PoE extender.
Compliant with IEEE 802.3af/at PoE standards, the PFT1300 can reliably power IP cameras and other PoE-enabled devices. When used with the Dahua PFT1200 High PoE Midspan, it can cascade up to 2 PoE extenders, supporting up to 3 IP cameras with a total power consumption of ≤25W.
Its compact design allows for easy junction box internal mounting or DIN rail mounting, making it suitable for professional and space-saving installations. Ideal for extending PoE networks in commercial, industrial, and surveillance applications.
Key Features
- 1 Input / 2 Output PoE Extender – Expands power and data connections
- Long Transmission – Extends Ethernet & PoE up to 300m
- PoE Standard Support – Compatible with IEEE 802.3af/at IP cameras
- Cascade Function – Connect up to 2 extenders with Dahua PFT1200
- Flexible Mounting – Junction box internal or DIN rail mounting
- Reliable Power – Supports up to 25W total power consumption
Applications
- Long-distance IP camera installations
- Expanding PoE networks in large buildings or campuses
- Industrial and commercial network deployments
- Security surveillance systems requiring multiple PoE devices
| pecification | Details |
| Model | PFT1300 |
| Brand | Dahua |
| Type | PoE Midspan Extender |
| Input Ports | 1 × RJ45 10/100M PoE power supply input |
| Output Ports | 2 × RJ45 10/100M PoE supply outputs |
| Transmission Distance | Up to 300m |
| PoE Standard | IEEE 802.3af/at |
| Cascade Support | Yes – with PFT1200 (up to 2 extenders) |
| Max Power Consumption | ≤ 25W (total) |
| Installation Mode | Junction box internal / DIN rail mounting |
