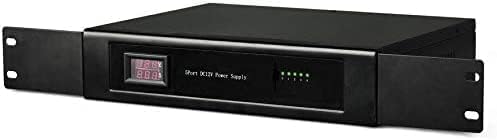

Name: Digiteck HTD1217-10A 17-Channel 12V 10A CCTV Power Supply – Rack Mount, PTC Fuses, Surge Protection
Brand: Digiteck
SKU: 10755
Availability: InStock

Digiteck HTD1217-10A CCTV Power Supply 17 Channel Rack Moun

Digiteck HTD1217-10A CCTV Power Supply 17 Channel Rack Mount

Digiteck HTD1217-10A CCTV Power Supply 17 Channel Rack

Digiteck HTD1217-10A CCTV Power Supply 17 Channel Rack Mou

Digiteck HTD1217-10A 17-Channel 12V 10A CCTV Power Supply – Rack Mount, PTC Fuses, Surge Protection

£104.99

Availability: 5 in stock Category: CCTV Brand: Digiteck

Add to wishlist

Reliable Power Protection: Individual PTC fuses ensure only affected outputs shut down during faults, keeping other connections active.
Short Circuit & Overcurrent Protection: Auto-reset PTC fuses restore power once the issue is resolved.
High Voltage Safety: Built-in surge protection shields connected devices from power spikes.
Versatile Applications: Ideal for CCTV cameras, PTZ, IR illuminators, video processing, and acces

Description
Technical Specification

Description

This power supply unit is designed to deliver reliable and efficient performance for a wide range of applications. It operates within an input voltage range of AC 90V-264V and supports a frequency range of 50Hz-60Hz. The unit provides a stable DC 12V output with a ±5% voltage regulation, ensuring consistent power delivery. With an output current of 10A and a total power capacity of 120W, it efficiently powers multiple devices through its 17 output channels, each safeguarded by a 2A fuse rating.

The power supply ensures minimal interference with an output ripple and noise level of ≤42MV, while maintaining an efficiency of 82.2%. Designed for durability, it operates effectively in ambient temperatures ranging from -30°C to 45°C with a relative humidity tolerance of 20% to 90% RH. Its compact dimensions (33x30x6.6cm) allow for easy installation, and it supports a transmission distance of up to 100 meters, making it an ideal choice for surveillance systems, access control, and other security applications.
