Description

Deltabell-X with Lightbox
Description

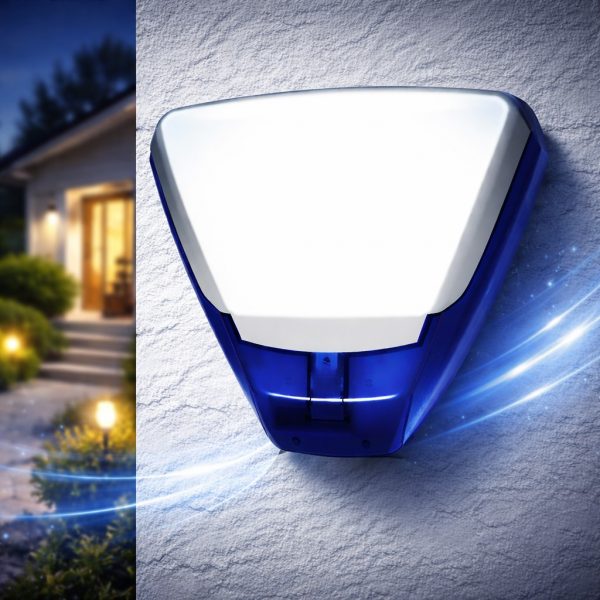

The premium warning device for any installation, the Deltabell-X, with its installed lightbox, offers superior day and night deterrence. It features excellent front illumination and effective backlit base shine. When in alarm, the bell simultaneously alerts nearby individuals with its twin piezo high-decibel output and flashing strobe, providing both auditory and visual warnings.

Key Features
Superior front and back illumination
Lid, base, and power tamper protecte

Sounders technical characteristics
Loudness 104 dB(A)
Sound and light indication on alarm Yes
Engineer hold off Yes
Number of Piezos 2
Flashing LED Yes
Comfort LED Yes
Back-lit Yes
Tamper protection Yes
Strobe duration and frequency 10ms, 1Hz
Sounder maximum duration 15 mins
Available with or without a lightbox Yes
SAC (self actuating bell) / SAB (self activating bell) option Yes
Self levelling Yes
Environmental and operating features
Certified operating temperature -25°C to 60°C
Nominal operating temperature -30°C to 60°C
Physical dimensions (H x W x D) 290 x 285 x 50mm
Electrical & battery
Battery type NiMH 7.2V, 250mAh
Battery life 2 – 5 years
Operating voltage 9-16V
Alarm current 300mA
Quiescent current consumption 90mA
