Description

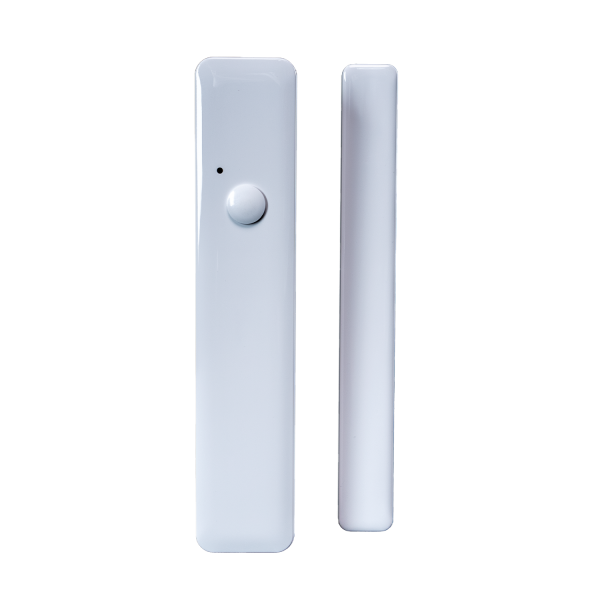

Pyronix MC1Z1-WE Enforcer Wireless Magnetic Contact

Overview

The Pyronix MC1Z1-WE is a compact Grade 2 wireless magnetic contact designed to protect doors, windows and other compatible openings within residential or commercial security systems.

In addition to its built-in magnetic contact, the MC1Z1-WE provides an external zone input and a separate tamper input. This allows compatible wired devices with a volt-free relay output to be connected and transmitted wirelessly through the Pyronix alarm system.

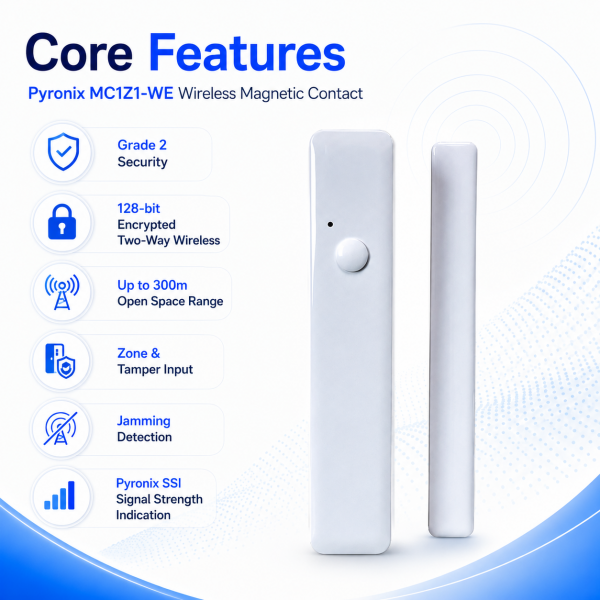

Key Features

• Genuine Pyronix MC1Z1-WE wireless magnetic contact
• Grade 2 security device
• Suitable for doors and windows
• Compatible with Pyronix Enforcer systems
• Compatible with EURO systems using a suitable ZEM
• Additional external zone input
• External tamper input for enhanced protection
• Secure 128-bit encrypted two-way wireless communication
• Wireless range of up to 300 metres in open space
• Advanced wireless jamming detection
• Pyronix SSI signal-strength checking technology
• Centrally positioned reed switch for easier alignment

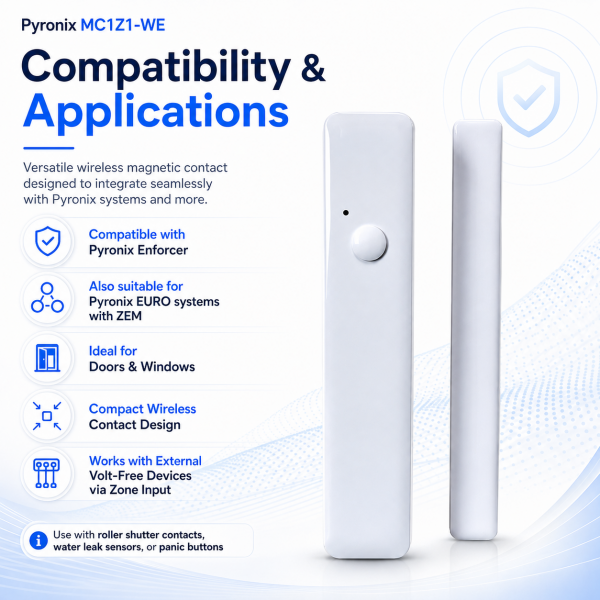

Flexible External Zone Input

The external zone input can be used with compatible wired devices that provide a volt-free relay output. Suitable applications may include wired roller-shutter contacts, water-leak sensors or panic buttons.

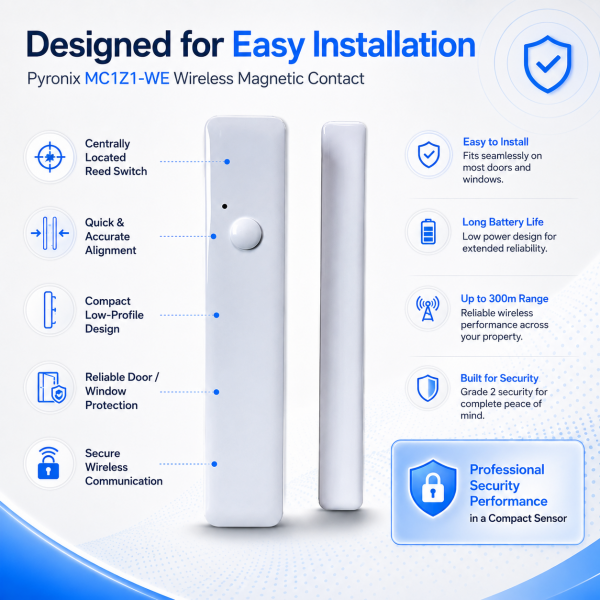

Faster and More Accurate Installation

The centrally located reed switch helps reduce the risk of incorrectly positioning the separate magnet during installation, making alignment quicker and more reliable.

Secure Two-Way Wireless Communication

The MC1Z1-WE uses encrypted two-way wireless communication and includes jamming detection. Pyronix SSI technology also allows the wireless signal strength to be checked during installation.

Compatibility Notice

Please check the exact model number and confirm compatibility with your existing Pyronix system before ordering. The maximum wireless range is specified for open-space conditions and may be reduced by walls, building materials and radio interference.

Installation and programming should be completed by a suitably competent alarm installer.
