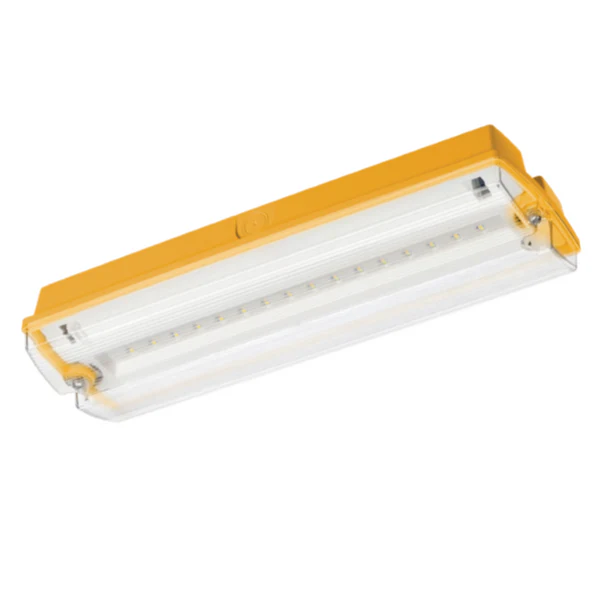

Red Arrow VANS/3Y Vanguard Site 110V LED Emergency Bulkhead, IP65, 3W, Yellow
£20.95
- Description
Description
Red Arrow Vanguard Site 110V LED Emergency Bulkhead – IP65 Maintained/Non-Maintained with LiFePO4 Battery
Professional 3-Hour Site Emergency Lighting with Hinged Gear Tray & Superior Spacing Optics
The Red Arrow Vanguard Site VANS/3Y represents professional-grade emergency lighting engineered specifically for construction sites, industrial facilities, and demanding temporary installations. This robust 110V LED bulkhead combines selectable maintained/non-maintained operation with advanced LiFePO4 battery technology, 3-hour emergency duration, and rugged IP65 construction—delivering reliable illumination during power failures across challenging site environments. The shallow profile design, hinged gear tray for rapid installation, and included self-adhesive exit legend kit provide complete emergency lighting capability where safety compliance is paramount.
Product Overview
Designed for site managers, electrical contractors, safety officers, and construction professionals, the Red Arrow Vanguard Site emergency bulkhead functions as a comprehensive emergency lighting solution for temporary and permanent site applications. The selectable operation modes, combined with advanced battery technology and robust yellow construction, deliver dependable emergency illumination across construction sites, industrial facilities, and outdoor work areas. This professional-grade luminaire provides essential safety lighting for evacuation routes and open areas—ensuring worker safety and regulatory compliance in challenging environments.
Key Features & Benefits
Configurable Emergency Operation
- Maintained Operation: Continuous illumination during normal and emergency conditions
- Non-Maintained Operation: Standby mode activation only during power failure
- Field-Selectable: Configure mode during installation for application requirements
- Operational Flexibility: Adapt to diverse site and facility lighting needs
- Simple Configuration: Straightforward mode selection process
- Professional Versatility: Single luminaire for multiple application scenarios
Advanced LiFePO4 Battery Technology
- Lithium Iron Phosphate Chemistry: Superior battery technology for emergency applications
- Extended Service Life: Significantly longer operational lifespan than traditional batteries
- Reliable Performance: Stable chemistry ensures consistent emergency operation
- Temperature Resilience: Performs reliably across specified operating range
- Reduced Maintenance: Fewer battery replacements throughout service life
3-Hour Emergency Duration
- Code Compliance: Meets 3-hour emergency lighting requirements
- Extended Evacuation Support: Provides illumination throughout extended emergencies
- Regulatory Standard: Compliant with emergency lighting duration standards
- Worker Safety: Ensures adequate lighting for complete site evacuation
- Professional Specification: Industry-standard emergency duration
- Reliable Performance: Consistent 3-hour duration throughout battery life
Superior Optical Performance
- Carefully Designed Lens: Optimized light distribution pattern
- Improved Spacings: Superior spacing-to-mounting-height ratios
- 150 Lumen Output: Bright LED illumination for emergency visibility
- 6500K Daylight Color: High-visibility cool white for emergency situations
- Ra > 80 CRI: Good color rendering for accurate safety signage recognition
- Professional Optics: Engineered for optimal emergency lighting coverage
Rugged IP65 Construction
- Complete Dust Protection: Dust-tight construction for site environments
- Water Jet Protection: Withstands low-pressure water jets
- IK06 Impact Rating: Impact resistance for demanding site conditions
- Yellow Housing: High-visibility for industrial and site applications
- ABS Body: Durable impact-resistant housing material
- Polycarbonate Diffuser: Tough, virtually unbreakable optical cover
Practical Installation Features
- Hinged Gear Tray: Facilitates easy access for wiring and maintenance
- Quick Installation: Time-saving design for efficient deployment
- Shallow Profile Design: Minimal projection from mounting surface

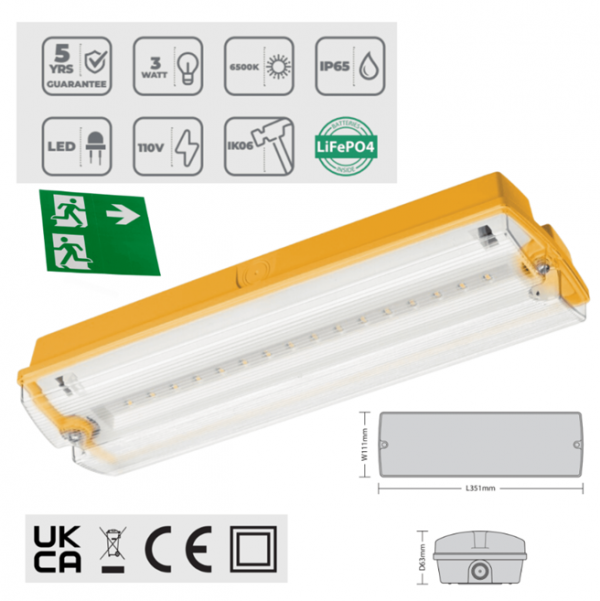

- Compact Dimensions: 351 x 111 x 63mm space-efficient form factor
- Lightweight Construction: 0.49kg reduces installation burden
- Included Exit Legend Kit: Self-adhesive signage supplied with luminaire
Comprehensive Certification & Warranty
- UKCA Certified: United Kingdom conformity assessed
- CE Marked: European conformity compliance
- Class II Electrical: Double-insulated safety classification
- Professional Standards: Meets emergency lighting regulations
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Red Arrow |
| Model | VANS/3Y |
| Product Range | Vanguard Site |
| Product Type | LED emergency bulkhead luminaire |
| Operation Modes | Maintained or non-maintained (selectable) |
| Emergency Duration | 3 hours |
| Power Rating | 3 watts |
| Lumen Output | 150 lumens |
| Emergency Lumen Output | 150 lumens |
| Input Voltage | 110V AC (site supply) |
| Frequency | 50/60Hz |
| Driver Type | Fixed output |
| Light Source | Integrated LED |
| Color Temperature | 6500K (daylight/cool white) |
| Color Rendering (CRI) | Ra > 80 |
| LED Lifespan | L70B50 54,000 hours |
| Battery Technology | Lithium Iron Phosphate (LiFePO4) |
| Installation Feature | Hinged gear tray |
| IP Rating | IP65 (dust-tight, water jet protection) |
| IK Rating | IK06 (impact resistance) |
| Body Material | ABS (impact-resistant) |
| Diffuser Material | Polycarbonate (high-impact) |
| Color Finish | Yellow |
| Electrical Class | Class II (double-insulated) |
| Operating Temperature | 0°C to 45°C |
| Emergency Operating Temp | 0°C to 45°C |
| Physical Dimensions | 351mm (L) x 111mm (W) x 63mm (D) |
| Product Weight | 0.49 kg |
| Supplied Accessories | Self-adhesive exit legend kit |
| Approvals | UKCA & CE |
