Ubiquiti U7-LR Long Range WiFi 7 Access Point – Tri-Band, Ceiling Mount, 2.5GbE PoE+
£109.99
The Ubiquiti U7-LR is a compact, ceiling-mount WiFi 7 access point delivering tri-band coverage, 2.5GbE uplink, and extended range for 300+ clients.
- Description
- Technical Specification
Description
The Ubiquiti U7-LR WiFi 7 Long Range Access Point is engineered for high-density, high-performance wireless environments. Designed in a compact, ceiling-mount form factor, this advanced AP offers tri-band connectivity across 2.4 GHz, 5 GHz, and 6 GHz, with 2×2 MU-MIMO on each band to ensure seamless multi-device support.
With throughputs of 688 Mbps (2.4 GHz), 4.3 Gbps (5 GHz), and 5.8 Gbps (6 GHz), the U7-LR can support 300+ concurrent clients, making it ideal for offices, schools, retail, and enterprise deployments.
A 2.5GbE uplink with PoE+ support ensures flexible installation and high-speed backhaul connectivity. Combined with a coverage area of up to 140 m² (1,500 ft²), this access point delivers next-generation WiFi performance with extended range.
Key Features
- Compact ceiling-mount design for discreet installation
- WiFi 7 (802.11be) tri-band performance (2.4, 5, 6 GHz)
- 2×2 MU-MIMO on each band for efficient client handling
- Speeds of 688 Mbps (2.4 GHz), 4.3 Gbps (5 GHz), 5.8 Gbps (6 GHz)
- Supports 300+ concurrent clients for high-density environments
- Coverage area up to 140 m² (1,500 ft²)
- 2.5GbE uplink with PoE+ for fast, reliable connectivity
- Backed by Ubiquiti’s UniFi ecosystem for seamless management
Applications
- Enterprise networks with high client density
- Educational institutions and lecture halls
- Hospitality and retail WiFi deployments
- Large offices and co-working spaces
- Public venues requiring robust wireless coverage
| Dimensions | Ø175.7 x 43 mm (Ø6.9 x 1.7″) |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 5 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |

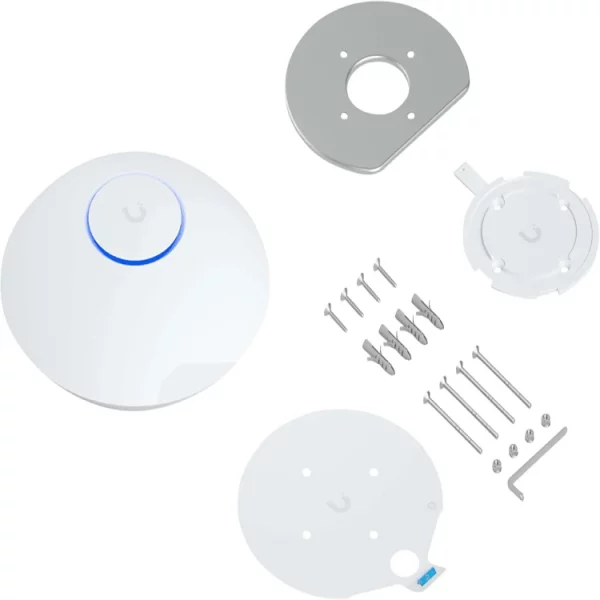

| Mounting | Ceiling, Wall (Plastic Mounting Plate included) |
| Power Method | PoE |
| MIMO | |
| 5 GHz | 3 x 3 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | |
| 5 GHz | 4.3 Gbps (BW160) |
| 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain | |
| 5 GHz | 6 dBi |
| 2.4 GHz | 4 dBi |
| Max. TX Power | |
| 5 GHz | 27 dBm |
| 2.4 GHz | 26 dBm |
| Supported Data Rates | |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23 , HT 20/40) |
| Hardware | |
| Max. Power Consumption | 14W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 448 g (15.8 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, galvanized steel (SGCC) |
| LEDs | |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | 30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | |
| UniFi Network | Version 9.1.120 and later |
| Mobile App | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
