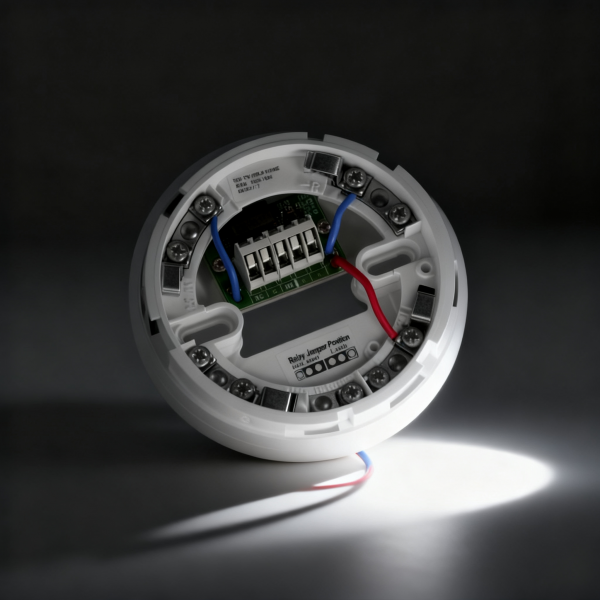

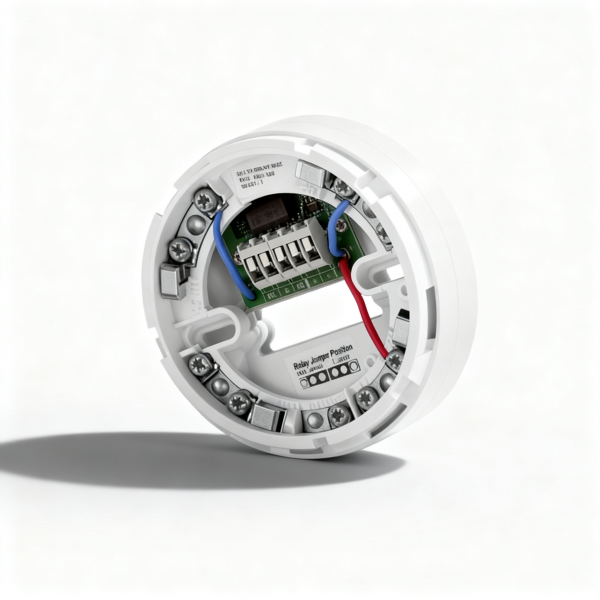

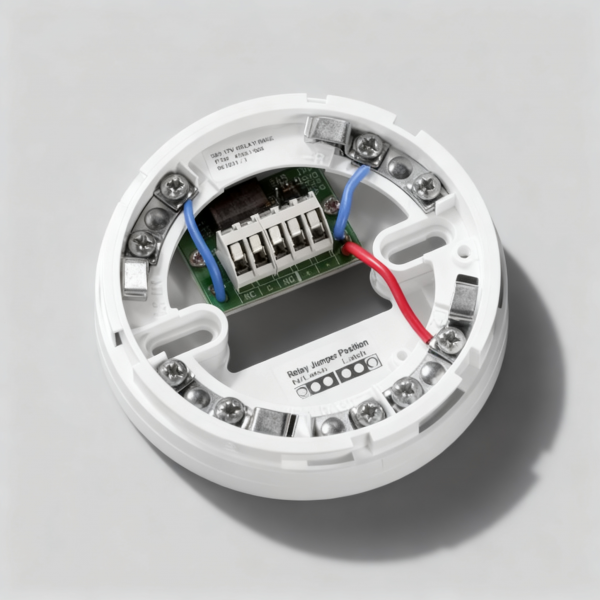

Apollo 45681-508APO Series 65 12V Relay Base, Latching/Non-Latching Detector Base, Fire & Security Systems, White
£13.94
- Description
Description
Apollo 45681-508APO Series 65 Relay Base – 12V | Professional Fire & Security Applications
Versatile Control Module for Integrated Detection Systems
The Apollo Series 65 12V Relay Base represents professional-grade engineering for fire detection and security system integration. Engineered for seamless compatibility with 4-wire detector supply circuits, this control module delivers reliable, configurable operation across diverse fire safety and security applications.
Product Overview
Designed by Apollo—a leading manufacturer of fire and security detection systems—the Series 65 Relay Base functions as an intelligent interface between detection circuits and auxiliary control systems. The configurable latching/non-latching design accommodates both fire safety protocols and security system requirements within a single, robust platform.
Key Features & Benefits
Intelligent Configuration
- Dual-Mode Operation: PCB-mounted jumper selects between latching (fire systems) and non-latching (security systems) modes
- Flexible Application: Single unit accommodates fire detection and security system requirements
- Protocol Compliance: Designed for 4-wire detector supply and alarm initiating circuits
Mechanical Design
- Robust Housing: White, self-extinguishing polycarbonate construction
- Detector Locking Mechanism: Integrated grub screw aperture ensures secure detector mounting
- One-Way Fit Design: Prevents incorrect installation; ensures proper circuit integration
- Zero-Force Terminals: Nickel-plated steel connectors provide corrosion-resistant, secure connections
Electrical Performance
- Relay Technology: Integrated relay module for volt-free control signal generation
- PCB Construction: Professional-grade printed circuit board with dual-screw retention system
- Earth Connector: Dedicated grounding provision for system safety compliance
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Apollo Fire Detectors |
| Model | Series 65 Relay Base |
| Part Number | 45681-508APO |
| Operating Voltage | 12V DC |
| Housing Material | White polycarbonate (self-extinguishing) |
| Terminal Type | Nickel-plated steel (zero-force) |
| Configuration | Jumper-selectable latching/non-latching |
| Mounting | Detector locking mechanism with grub screw |
| Wiring Standard | 4-wire circuits (2-wire capable where codes permit) |
Circuit Applications
Fire Detection Systems
- Latching mode operation for fire alarm persistence
- 4-wire detector supply compatibility
- Alarm initiating circuit integration
- Code-compliant fire safety protocols
Security Systems
- Non-latching mode for standard security operation
- Auxiliary system control signals
- 2-wire and 4-wire circuit compatibility
- Automatic door closer and access control integration
