Description

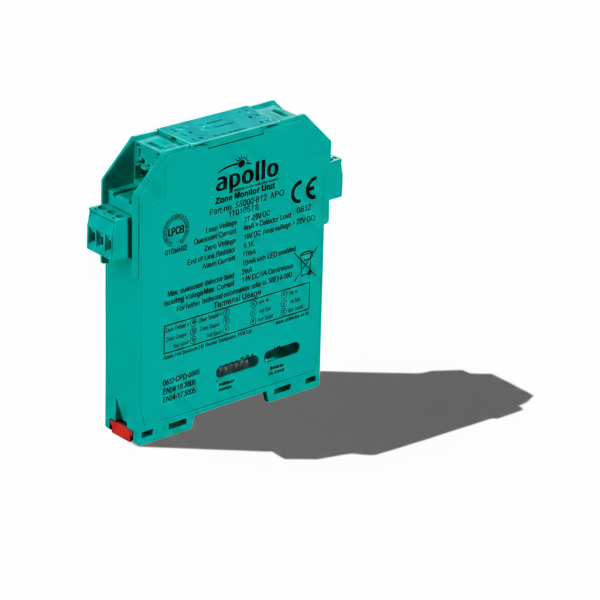

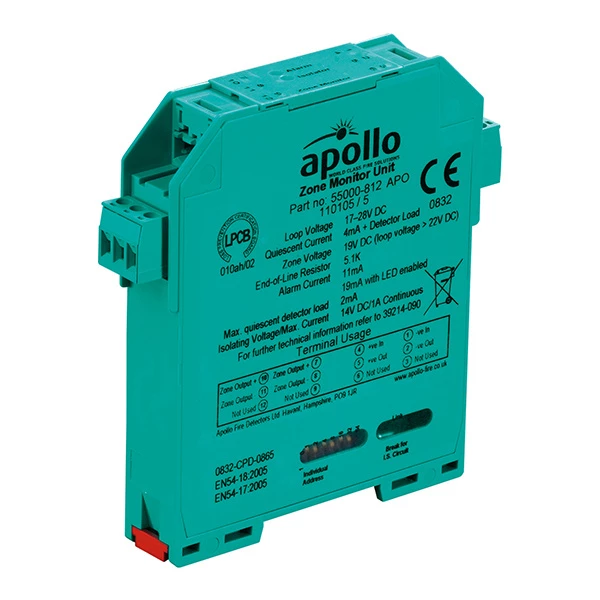

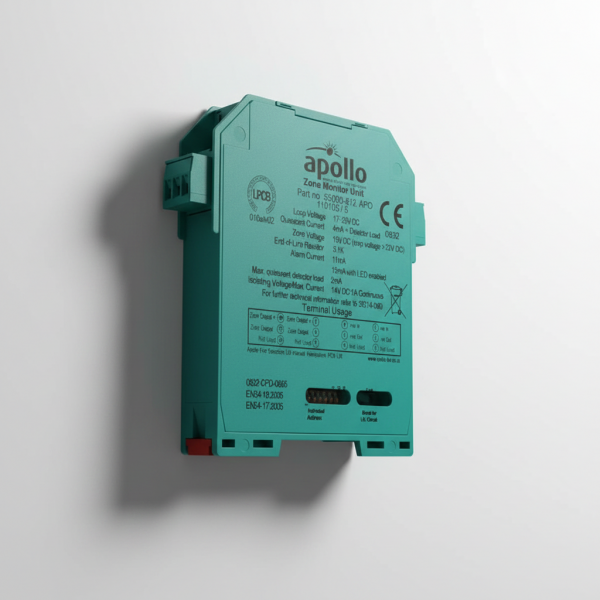

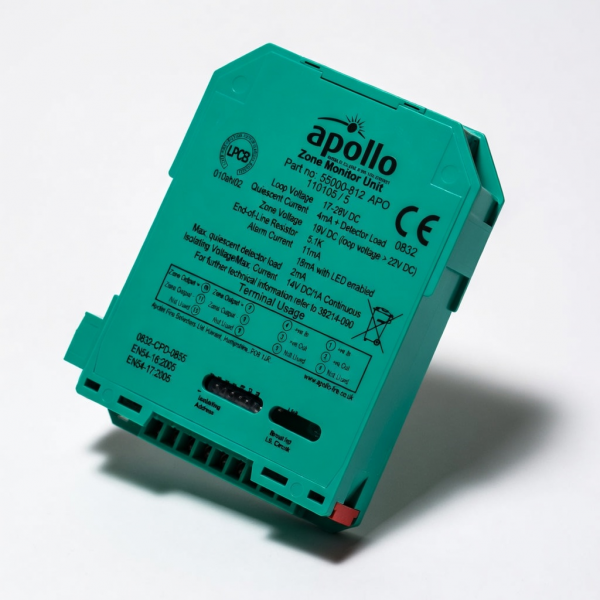

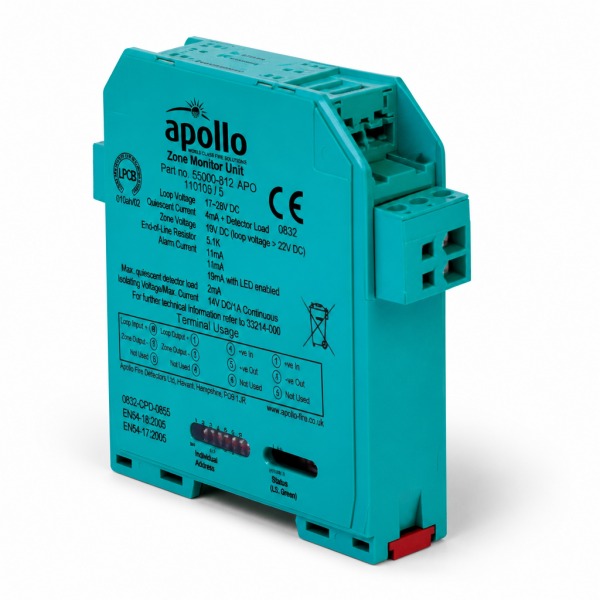

The Apollo XP95 DIN-Rail Zone Monitor Module – Isolating (55000-812APO) is designed to interface conventional fire detection zones with Apollo XP95 and Discovery addressable fire alarm systems. It enables the connection, monitoring, and control of a conventional zone containing up to 20 Apollo Series 65, Orbis, or equivalent detectors.

This module supplies power to the conventional detection zone and continuously monitors its status, reporting alarms, faults, and isolations directly to the addressable fire control panel. Its isolating functionality ensures that short circuits are contained, maintaining system integrity and minimising disruption.

Designed specifically for DIN-rail mounting, the module is ideal for use in control panels or distribution enclosures, providing a tidy, space-efficient installation. Fully compliant with relevant fire standards, it offers a reliable solution for upgrading or expanding fire alarm systems.

• Connects conventional detection zones to addressable systems
• Supports up to 20 Apollo Series 65, Orbis or equivalent detectors
• Integrated short-circuit isolation for enhanced system protection
• DIN-rail mountable design for control panel installations
• Compatible with Apollo XP95 and Discovery protocols
• Ideal for system upgrades and hybrid fire alarm installations

Product Specifications:

• Manufacturer: Apollo Fire Detectors
• Model / Part Number: 55000-812APO
• Product Type: DIN-Rail Zone Monitor Module (Isolating)
• Compatibility: XP95, Discovery addressable systems
• Detector Capacity: Up to 20 conventional detectors
• Mounting: DIN-Rail
• Standards: EN 54-17 and EN 54-18 certified

The Apollo XP95 DIN-Rail Zone Monitor Module provides a dependable and standards-compliant solution for integrating conventional fire detection zones into modern addressable fire alarm systems.
