Description

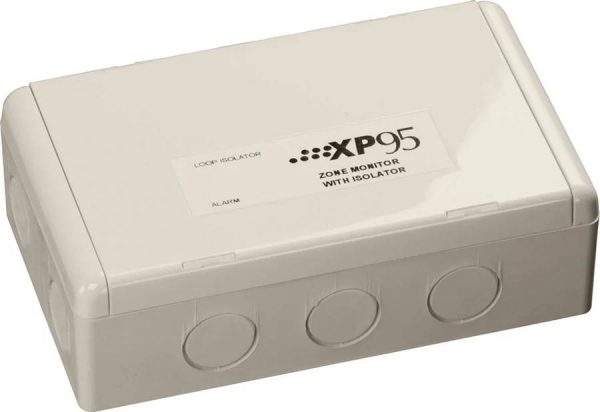

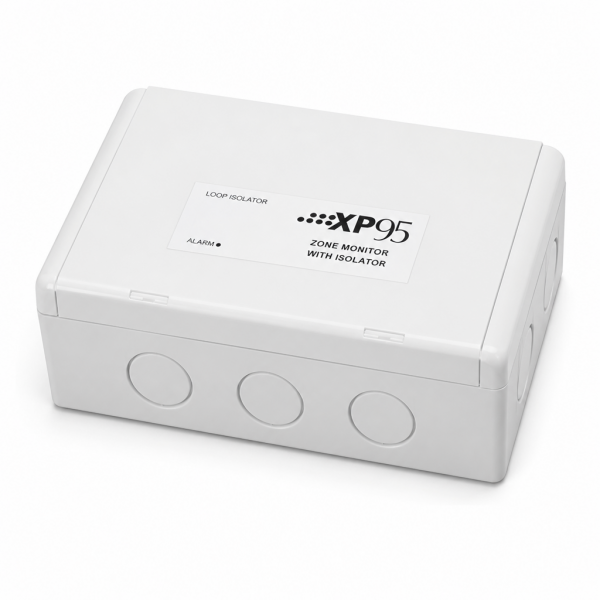

XP95 Zone Monitor Module – Isolating

Product Overview

The XP95 Zone Monitor Module – Isolating (55000-845APO) is designed to power and control a conventional detection zone within an addressable fire alarm system.
It supports up to 20 Apollo Series 65, Orbis, or compatible fire detectors, providing reliable status monitoring and communication with the fire control panel.

Key Features

• EN 54-17 & EN 54-18 certified
• Allows conventional detection zones to be integrated into addressable systems
• Supports up to 20 Apollo Series 65, Orbis or equivalent detectors
• Includes built-in isolation for fault protection
• Compatible with XP95 and Discovery series
• Suitable for semi-flush or surface mounting

Product Description

The XP95 Zone Monitor Module enables seamless integration between conventional and addressable fire alarm systems.
By allowing a traditional detector circuit to be added to an intelligent XP95 or Discovery loop, it simplifies system expansion while maintaining high reliability and compliance with international fire safety standards.

This isolating version enhances system integrity by protecting the loop against short circuits.
It ensures that only the affected section of the loop is isolated, maintaining functionality across the rest of the system.
Ideal for retrofit and mixed-technology installations, the module can be mounted semi-flush or surface-mounted as required.

Specifications

Applications

• Addressable fire alarm systems requiring conventional zone integration
• System upgrades and retrofits
• Commercial, industrial, and residential fire detection systems
• XP95 and Discovery loop networks
