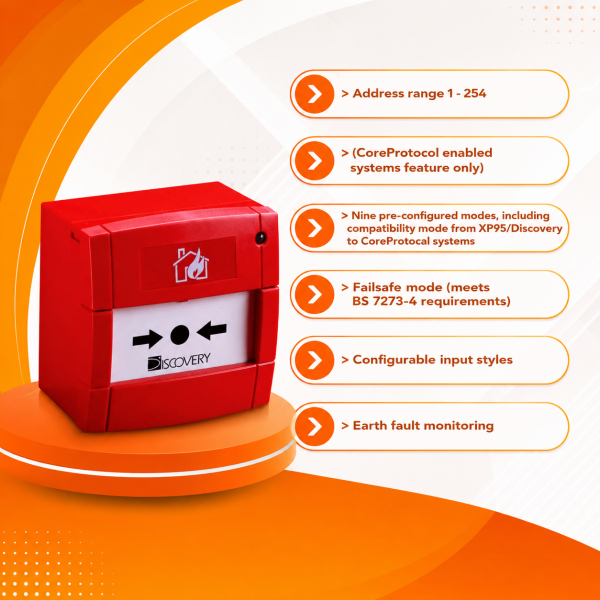

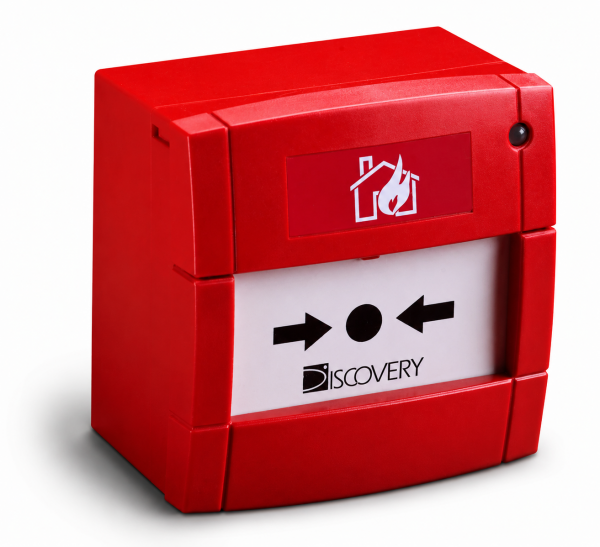

Apollo 58100-971MAR Discovery Marine Manual Call Point with Isolator
Original price was: £145.38.£129.99Current price is: £129.99.
Key Features – 58100-971MAR
- Includes a short circuit isolator
- SIL level 2 certified
- EN 54-11 Certified
- Reports an alarm in under 0.2 seconds
- ‘Plug and Play’ terminal connections for faster wiring
- Continuity link for wiring test before commissioning
- Suitable for semi-flush or surface mounting
- XP95 & Discovery compatible
- Resettable operating element
- Easy access, front reset mechanism
- Ergonomic reset key and keyring hole
- Front facing accessible addressing for commissioning
- E-Z fit first fix terminals for installation (indoor only)
- Flashing polling LED option
- 170º viewable LED indicator
- Description
Description
Apollo 58100-971MAR Discovery Marine Manual Call Point with Isolator
The Discovery Marine Manual Call Point has been approved for use in indoor marine applications.
A seven-segment DIL switch enables addressing of each call point at the commissioning stage. When operated, the manual call point interrupts the polling cycle for a fast response. Bi-coloured LEDs indicate isolate and normal conditions.
Operation
The Discovery Marine Manual Call Point (MCP) is based on the KAC conventional MCP range. It is electronically and mechanically compatible with previous Apollo call points based on KAC’s World Series product.
The address of each call point is set at the commissioning stage by means of a seven-segment DIL switch.
If a MCP is activated, it interrupts the normal protocol to give a fast response.
Product Specification
| Product code: | 58100-971MAR |
| Description: | Apollo Discovery Marine Manual Call Point – Isolating [SIL2] |
| Dimensions: | W:89mm x L:93mm x 60mm |
| Applications: | Bedrooms, Dusty environments, Marine |
| Key type: | KAC Manual Call Point test & reset key |
| Detection principle: | Operation of a switch |
| Colour: | White |
| Materials: | Housing: Polycarbonate |
| Approvals: | ESC, DNV.GL, CCS, MED |
| Quiescent current: | 100μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Protocol voltage: | 5 to 9V peak to peak |
| Power-up surge current: | 1mA |
| Max. power-up time: | 1 second |
| Analogue value nominal: | 16 |
| Alarm level analogue value: | 64 |
| Humidity: | 0 – 95% (no condensation or icing) |
| Operating temperature: | -20 to 60°C |
| IP Rating: | IP24D |
| Warranty: | 10 year |
