C-TEC BF456A/CX/W Addressable Base Sounder VAD, 96dB, C-3-8 Coverage, EN54-3/23/17 Certified, XP95/Discovery Compatible, White
£81.99
- Description
Description
Product Details for C-TEC C-3-8 Base VAD c/w 96dB Sounder (XP95/Discovery Compatible) (BF456A/CX/W)

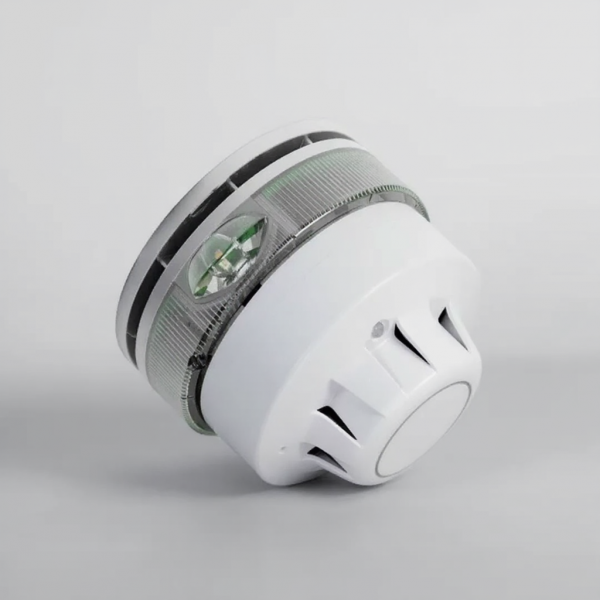

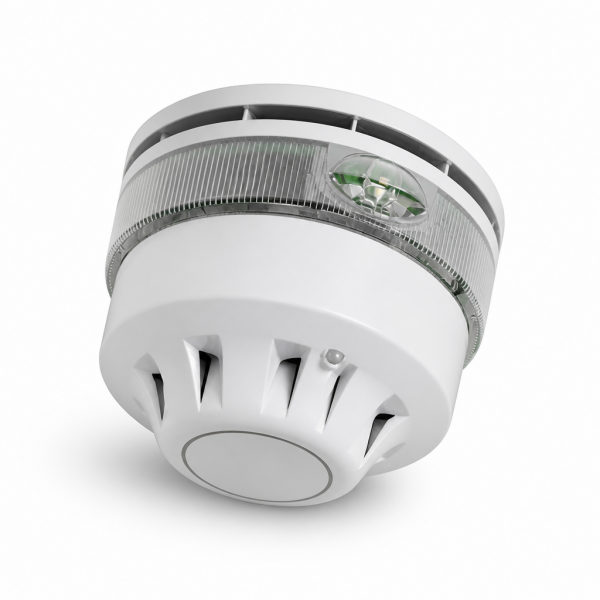

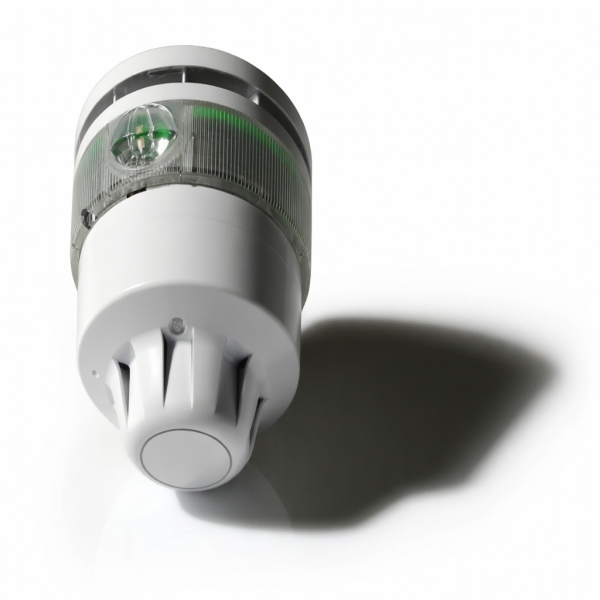

The C-TEC BF456A/CX/W is an addressable C-3-8 base VAD and combined 96dB sounder which is compatible with Apollo‘s range of XP95 and Discovery detection devices and designed for use with C-TEC’s range of XFP and ZFP fire panels.
The Base Mount range of addressable, loop-powered bases includes sounders, visual alarm devices (VADs) and combined sounder VADs. They are designed for use with C-TEC’s ZFP/XFP panels and other Apollo Discovery compatible fire panels.
Their purpose is to visually and audibly alert building occupants of a fire alarm.
All bases can be optionally used as either:
- a stand-alone base using a separately available locking white cap (BF330CTLIDW) / red cap (BF330CTLIDR), or
- a combined, base and Apollo detector (Apollo detectors are separately available).
The bases offer low current consumption, high sound output, high efficiency VADs, seven selectable volume levels, 15 selectable tone pairs and built-in short-circuit loop isolators. The combined sounder and VAD on the BF432A/CX/W and BF456A/CX/W bases can be set to operate independently of each other (panel dependent function).
All bases (excluding BF432A/CX/W and BF459A/CX/W) are fully certified with all relevant sections of the fire alarm device standards EN 54-3 (Sounders), EN 54-23 (Visual alarm devices – VADs) and EN 54-17 (Short-circuit isolators).
Key Features of the BF456A/CX/W |
|---|
| > Third-party certified to EN54-3 (Sounders), EN54-23 (VADs) and 17 (Isolators) by the LPCB. > Provides ‘C-3-8’ light distribution (min 0.4 lux over a 3 x 8m cylindrical area). > Supplied with a BF431QCP quick connect plate and detector spur wires. > Impressive 96dB(A) sound output @ 1m. > Onboard short-circuit loop isolator. > 550µA quiescent current. > 14mA alarm current @24V DC (VAD lit, sounder on max). > Group addressing facility allows multiple devices to be operated simultaneously. > 7 selectable volume levels and up to 15 selectable tone pairs. > Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use. > IP21C rated. |
