Name: C-Tec ZFP8M/X ZFP 8-Loop Analogue Addressable Fire Alarm Control Panel with Medium Enclosure
SKU: ZFP8M/X
Availability: OutOfStock

-1%

New

C-Tec ZFP8M/X ZFP 8-Loop Analogue Addressable Fire Alarm Control Panel with Medium Enclosure

Original price was: £4,880.49.Current price is: £4,849.99.

Availability: Out of stock SKU: ZFP8M/X Category: Fire Safety Tag: C-TEC ZFP 8 Loop Touchscreen Fire Panel Apollo Protocol

Key Features of the ZFP8M/X
> 8 loop touch-screen panel in medium enclosure > Blank peripheral modules > Compatible with Apollo XP95 / Discovery protocol > Third-party certified to EN54 parts 2 & 4 > Rapid loop learn, flexible cause & effects and powerful system diagnostics > Hi-integrity fault-tolerant RS485 networking option allows up to 128 network nodes (64 main panels and 64 Compact Controllers) > Optional ‘A-Bus’ expansion PCBs, paging and graphic interface facilities > Intuitive PC programming tools

Nifty Networking

Never before has networking a fire panel been so trouble-free.

Creating a sophisticated fire alarm system for an airport, hospital, university, tower block, hotel, football stadium or other large building is just a few steps up from establishing a simple ‘one out, all out’ system for a small factory unit.

Up to 64 eight-loop panels can be interconnected over the ZFP’s high-integrity fault tolerant network. This versatility, coupled with the ability to assign individual zones across the network and add up to 38 characters of custom text per device means letting the emergency services know the precise location of a fire has never been easier.

Touch and go

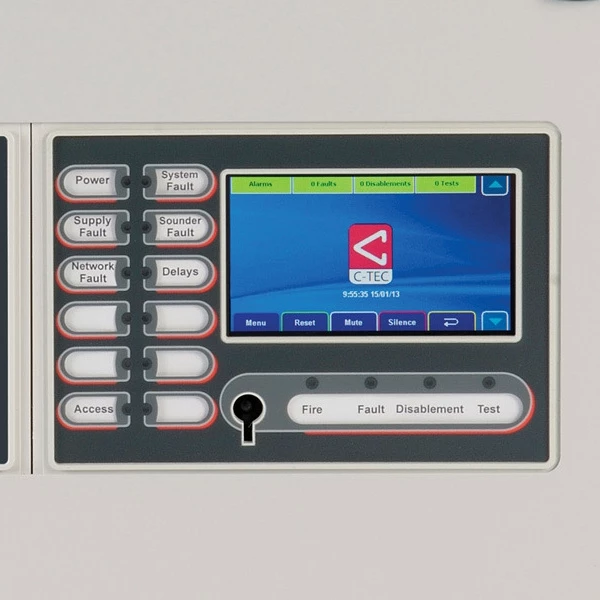

Everything about the ZFP’s unique full-colour touchscreen interface has been designed with the user in mind.

Simply tap the option you require and away you go. Whether you’re the responsible person on site, the installer, the commissioning engineer or the emergency services, you can access the information you require quickly and easily – all at the touch of a virtual button.

Powerful diagnostics, rapid loop learn, ‘SafeMode’ and a unique ‘DeviceManager’ function combine to make the ZFP one of the most user-friendly control panels on the market.

Additional Features
For specialist installation companies and commissioning engineers, the ZFP has no equal.

Features such as a fully filterable 20,000+ event memory, powerful 500mA loop drivers, optional paging and graphic interface facilities, emailable firmware updates and intuitive PC programming tools combine to make the ZFP a very special fire panel indeed.

All this and full compliance with EN54 parts 2 and 4 means that the ZFP is rapidly becoming the fire panel of choice for the fire industry worldwide.

Description
Additional information

Description

Product Details for C-TEC ZFP 8 Loop Medium Fire Panel w/ Blank Modules (Apollo Protocol) (ZFP8M/X)

The C-TEC ZFP8M/X is an 8 Loop Addressable Touchscreen fire alarm control panel compatible with Apollo/Hochiki protocol in a medium size enclosure with blank peripheral modules.

Created with the input of some of the world’s leading fire alarm and life safety experts, the ZFP is the powerful touchscreen-controlled fire alarm panel that everyone’s been waiting for.

Designed and built in the UK, the panel can be configured to suit any application. From small ‘one out, all out’ systems to large multi-loop networked systems with sophisticated cause and effects, the ZFP can handle them all – with ease.

Product Specification for C-TEC ZFP 8 Loop Medium Fire Panel w/ Blank Modules (Apollo Protocol) (ZFP8M/X)

Approvals/certifications	Certified to EN54-2/4 by the LPCB (0832-CPD-0758).
Protocol/compatibility	Apollo XP95/Discovery.
Mains supply	230V 50/60Hz.
Mains rated current	1.35A maximum.
Internal power supply	27Vdc nominal.
Total output current limited to	5A @ 230Vac (Imax.A 4A; Imin. 12mA).
Battery charge capacity	7Ah min to 38Ah max
Quiescent current	Varies depending on the panel’s configuration – refer to our ZFP loop/battery calculation tool for details.
Max battery size and type	2 x 12V 38Ah VRLA connected in series.
No. of loop drivers	2, 4, 6 or 8 (dependent on model purchased).
Max. loop output current	500mA (25V min; 34V max).
Max. loop length	1KM.
Max. addressable devices per loop	126.
No. of conventional sounder circuits	2 (Max. length per circuit is 500m).
EOL resistor value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold).
Max. sounder output current	2 x 1A.
Auxiliary relays	2 x Programmable Relays (programmable from C&Es). 1 x Fault Relay (active when no faults are present). Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc.
Other outputs	24V Aux. Power (19.5V min, 28V max). Protected by a resettable fuse. Max. current 100mA.
Auxiliary inputs	2 x Programmable Inputs (programmable from C&Es). Connect to 0V to trigger, Max. input voltage 27V (non-latching).
PC connection	Via a galvanically isolated USB socket on the Z41 control module.
Pager/DECT connection	RS232. ESPA compatible.
Graphics interface/diagnostics connection	RS485. Drax compatible.
Network connection	RS485 hi-integrity multi-path fault tolerant network connection via optional ZHN network card. Max 128 network nodes (up to 64 main panels & 64 compact controllers).
Indicators	Full-colour 480 x 272 pixel touchscreen, all relevant EN54 indicators plus 5 programmable indicators. Additional indicators dependent on Switch & Indicator module fitted.
Controls	Interactive touchscreen with menu sensitive buttons; 1 x keyswitch allowing direct access to Access Level 2. Additional controls dependent on Switch & Indicator module fitted.
Connections	Fixed, largest acceptable conductor size 1mm2.
Expansion connections	RS485 peripheral bus connection allows the connection of up to 15 ‘A-Bus’ PCBs (2 control cores plus screen plus 2 cores for power).
Product dimensions (mm)	450 W x 720 H x 200 D mm
Construction & finish	Light grey textured mild steel, 1.2mm Zintec. RAL7035 epoxy paint.
IP Rating	IP30.
Operating conditions/temperature	-5ºC to +40ºC. Max relative humidity: 95%.
Hole required for semi-flush mounting:	456 W x 726 H x 195 D mm. Requires ZBEZM bezel.
