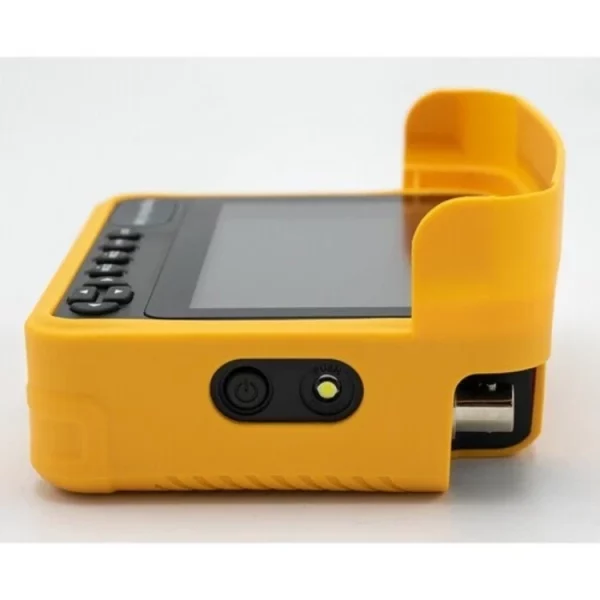

Dahua DH-PFM904 CCTV Camera Mount Tester 4.3″ Screen HDCVI/AHD/TVI/CVBS
£297.00
Compact Dahua DH-PFM904 tester with 4.3″ screen supports HDCVI, AHD, TVI, CVBS, audio test, 12V output, and PTZ control.
- Description
- Technical Specification
Description
The Dahua DH-PFM904 Integrated Mount Camera Tester is a versatile and portable device tailored for security installers and maintenance engineers. Designed to support major video formats including HDCVI, AHD, TVI, and CVBS, it streamlines camera setup, adjustment, and diagnostics in a single compact tool.
Equipped with a 4.3″ TFT screen (480×272 resolution), it provides real-time video display for precise alignment and monitoring. The tester includes a 12V/1A DC power output, PTZ control via RS-485, and audio input test capabilities. Its rugged, lightweight build with a removable wrist strap makes it ideal for field use, while replaceable 18650 lithium-ion batteries ensure up to 8 hours of continuous operation.
Whether you’re installing analog or HD-over-coax cameras, the PFM904 ensures efficiency, convenience, and professional-grade functionality.
Key Features
- Supports HDCVI, AHD, TVI, CVBS video formats
- 4.3″ TFT display with 480×272 resolution
- 12V/1A DC output for powering cameras during installation
- Audio input testing and RS-485 PTZ control
- Compact and lightweight, includes wrist strap for portability
- Keyboard operation with OSD menu and control features
- Replaceable 18650 batteries for extended usage
- Multi-language interface for global compatibility
Applications
- CCTV installation and field testing
- PTZ camera setup and control
- Audio channel verification
- Multi-format analog and HD-over-coax camera configuration
- On-site camera troubleshooting and maintenance
| Specification | Detail |
|---|---|
| Model | DH-PFM904 |
| Screen | 4.3″ TFT, 480 × 272 resolution |
| Supported Formats | HDCVI, HDTVI, AHD, CVBS (NTSC, PAL) |
| RS-485 Support | Yes, with multi-protocol compatibility |
| Audio Test | 1 channel input |
| Operating System | Linux |
| Battery Type | 2 x 18650 lithium-ion (replaceable) |
| Battery Life | Up to 8 hours |
| Power Output | 12V/1A DC |
| Keyboard | 8-key operation |
| LED Lights | 3 x 35lm indicators |
| USB Port | 1 x USB micro-B for charging/data |
| Charging Port | Micro USB 5V/1A |
| Operating Temp. | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | 30%–95% RH (non-condensing) |
| Dimensions (WxHxD) | 125 x 100 x 65 mm (4.92″ x 3.94″ x 2.56″) |
| Net Weight | 0.34 kg (0.75 lb) |
| Gross Weight | 0.74 kg (1.63 lb) |
| Certifications | CE (EN 55032), FCC (Part 15 Subpart B) |
