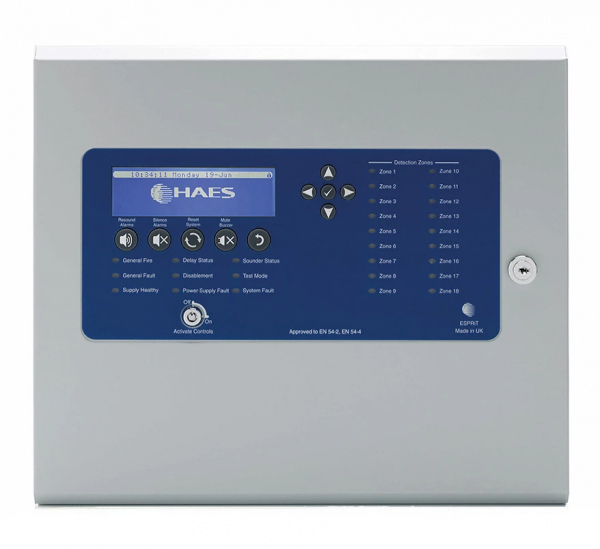

Haes ESA-1006 Esprit Apollo 1-2 Loop Analogue Addressable Control Panel, Apollo Protocol
Original price was: £899.99.£699.99Current price is: £699.99.
Key Features – ESA‑1006
- One to two loops (supplied with 1 loop card as standard)
- 2 programmable sounder circuits
- Large graphical display
- 255 date and time stamped event log
- Auto‑learn function
- Supports up to 240 devices per loop (Soteria)
- False alarm management
- Programmable company logo
- Delays to outputs
- 64 programmable groups
- 18 zonal LEDs
- 3.4A integral power supply unit (PSU)
- Approved to EN54‑2 and EN54‑4
- Robust metal enclosure
- Description
Description

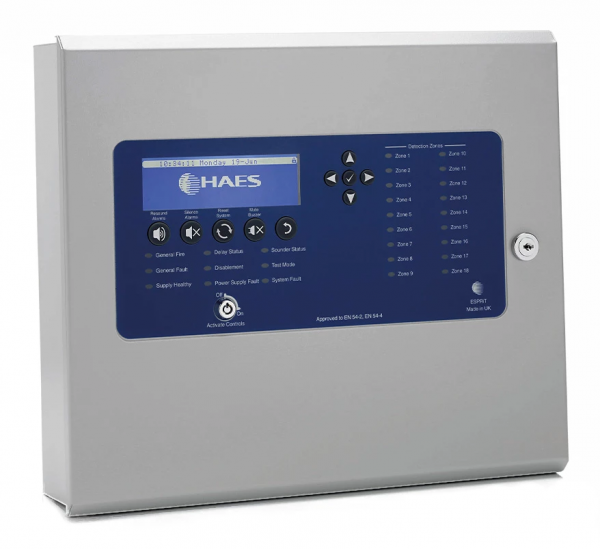

HAES Esprit 1-2 Loop Addressable Fire Panel (Apollo Protocol) – ESA-1006
Product Overview
The HAES Esprit 1-2 loop analogue addressable control panels provide a simple-to-use, cost-effective, and robust solution for the intelligent fire systems market. With compact styling and powerful programming capabilities, this panel is ideal for all small and medium site requirements.
Key Features
- Expandability: Supports 1 to 2 loop circuits.
- Device Capacity: Up to 240 addresses per loop when utilizing Soteria devices.
- User Interface: Large graphical display with easy-to-navigate menus for fast setup and maintenance.
- Power Supply: Supplied with a 3.4Amp internal switch-mode power supply module.
Protocol & Compatibility
The Esprit-A panels support the full range of Apollo protocol devices, including:
- Wired Devices: XP95, Discovery, and Soteria.
- Wireless Devices: Xpander and REACH.
Standards & Approvals
- Approved to European standards EN54-2 and EN54-4.
Product Specification
| Enclosure | 1.2mm Mild Steel IP30. Colour ref MW334E Interpon Powder coat |
| Cable entry | Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions | Back box: 350 W x 300 H x 80 D (mm), Lid: 357 W x 310 H x 25 D (mm) |
| Mains supply | Universal switch mode PSU, 230Vac ± 10% 50Hz, 1.2A input current |
| Battery capacity | Up to 7 Ah 24V, Fire retardant |
| Charger current | 700mA |
| Auxiliary supply | 400mA, 28V |
| Loop | Apollo Protocol. Up to 2 loops. Each loop – 500mA, Cable length – 1km max |
| Sounder circuits | 2 x 400mA 28V Dc |
| Switch inputs | CC, PULS |
| Event log | 255 events, time & date stamped |
| Earth fault monitoring | Yes |
| Display | 240 x 64 Graphical LCD backlit |
