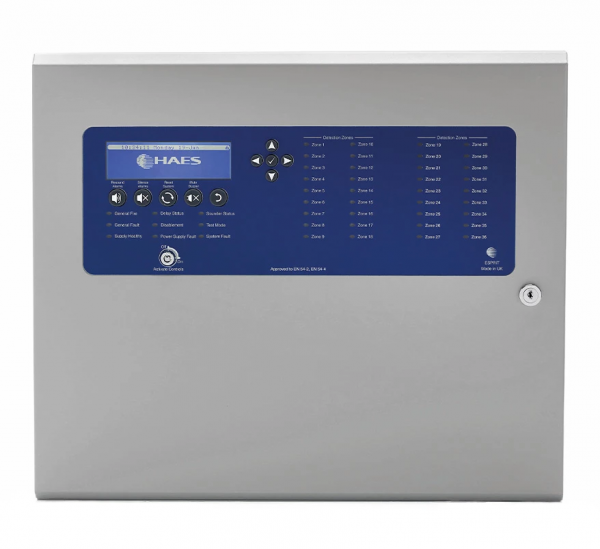

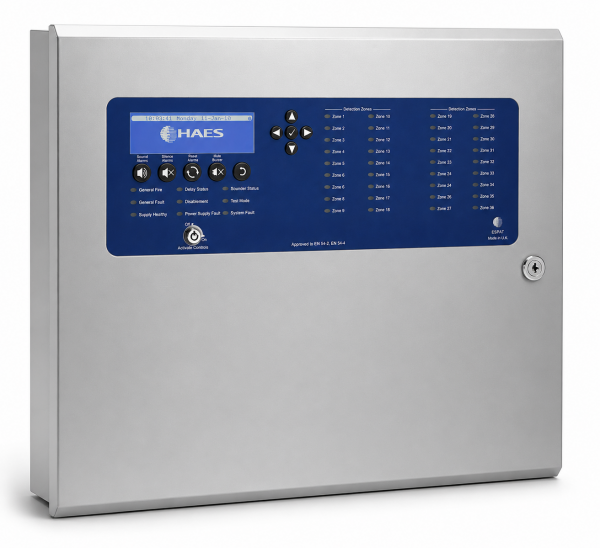

Haes ESA-1007 Esprit Apollo 1-4 Loop Analogue Addressable Control Panel, Apollo Protocol
Original price was: £950.00.£875.99Current price is: £875.99.
Key Features of the ESA-1007 |
|---|
| > One to four loops > 2 programmable sounder circuits > Large graphical display > 255 date and time stamped event logs > Auto learn function > 240 devices per loop soteria > False alarm management > Programmable company logo > Delays to outputs > 64 programmable groups > 36 zonal LEDs > 3.4A integral PSU > Approved to EN54-2 & EN54-4 > Robust metal enclosure |
- Description
Description
HAES Esprit 1-4 Loop Addressable Fire Panel (Apollo Protocol) – ESA-1007
Product Overview
The HAES Esprit 1-4 loop analogue addressable control panels have been developed to provide a simple to use, cost-effective, and robust solution for the intelligent fire systems market. Its compact styling and programming power make it ideal for all small and medium site requirements.
Key Features
- Expandability: 1 to 4 loop circuits.
- Capacity: Up to 240 addresses per loop when using Soteria devices.
- User Interface: Large graphical display with easy to navigate menus for fast setup and maintenance.
- Power Supply: 3.4Amp internal switch mode power supply module.
Protocol & Compatibility
The Esprit-A panels support the full range of Apollo protocol devices:
- Standard Devices: XP95, Discovery.
- Wireless Devices: Xpander, REACH.
- Advanced Devices: Soteria.
Standards & Approvals
- Approved to European standards EN54-2 and EN54-4.
Product Specification
| Enclosure | 1.2mm Mild Steel IP30. Colour ref MW334E Interpon Powder coat |
| Cable entry | Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions | Back box: 450 W x 385 H x 100 D (mm), Lid: 463 W x 394 H x 25 D (mm) |
| Mains supply | Universal switch mode PSU, 230Vac ± 10% 50Hz, 1.2A input current |
| Battery capacity | Up to 18 Ah 24V, Fire retardant |
| Charger current | 1.2A |
| Auxiliary supply | 400mA, 28V |
| Loop | Apollo Protocol. Up to 4 loops. Each loop – 500mA, Cable length – 1km max |
| Sounder circuits | 2 x 400mA 28V DC |
| Switch inputs | CC, PULS |
| Event log | 255 events, time & date stamped |
| Earth fault monitoring | Yes |
| Display | 240 x 64 Graphical LCD backlit |
