Labgear PSUFC 300mA Fully Screened Power Supply Type-F Plug Short Circuit Protection
£13.47
Prices exclude VAT. Tax and delivery are calculated at checkout.
| Brand | Labgear |
| Connectivity technology | Three-pin UK power plug |
| Connector type | Type-F |
| Special feature | Connection to the PSUFC is made with F Connectors (Male), Short Circuit Protection, Regulated power supply ideal for powering any masthead amplifier, or multiple masthead amplifiers in cascade, 12VDC – Voltage tolerance 5% – Current 300mA max, Complies with ErP (Energy Related Products) Directive. When there is no load the power uses is less than 0.3WConnection to the PSUFC is made with F Connectors (Male), Short Circuit Protection, Regulated power supply ideal for powering any masthead amplifier, or multiple masthead amplifiers in cascade, 12VDC – Voltage t… See more |
| Colour | White |
| Mounting type | Wall Mount |
| Amperage | 3E+2 Milliamps |
| Number of items | 1 |
| Material | Plastic |
| Output voltage | 12 Volts |
Key Features
- Regulated power supply ideal for powering any masthead amplifier, or multiple masthead amplifiers in cascade
- 12VDC – Voltage tolerance 5% – Current 300mA max
- Complies with ErP (Energy Related Products) Directive. When there is no load the power uses is less than 0.3W
- Connection to the PSUFC is made with F Connectors (Male)
- Short Circuit Protection
Additional information
Talk to our Leicester-based team.
Excluding bank holidays.
The details
Product information.
Explore the product details, specifications and reviews before ordering.
- Description
- Reviews (0)
Description
Product Description

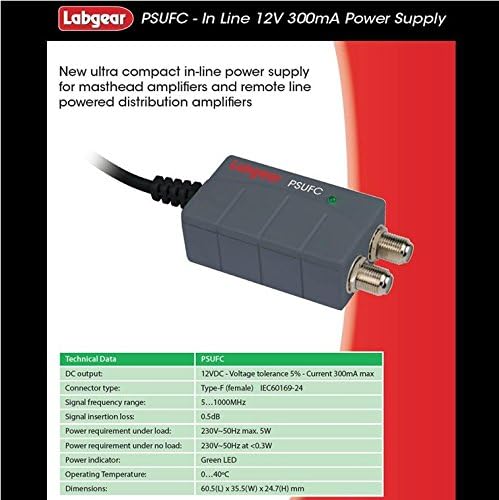

The Labgear PSUFC is a new ultra compact in-line power supply for masthead amplifiers and remote line powered distribution amplifiers. This 12V DC 3mA psu can be used to power any masthead amplifier, or a number of masthead amplifiers in cascade, or other line powered amplifiers providing the total current demand is not more than 300mA. Ideally fixed to a wall, skirting board, mounting board or simulate hard surface a ventilation gap of at least 25mm is advised around the front and sides of the unit. It complies with the ErP directive so when there is no load it uses only 0.3W. Connections are made using Type-F connectors (male). The PSUFC has a green LED power indicator and features automatic short circuit and overload protections and will cut out automatically when either is detected. Reset is automatic when the problem is solved.
Box Contains
1 x PSU
