-6%

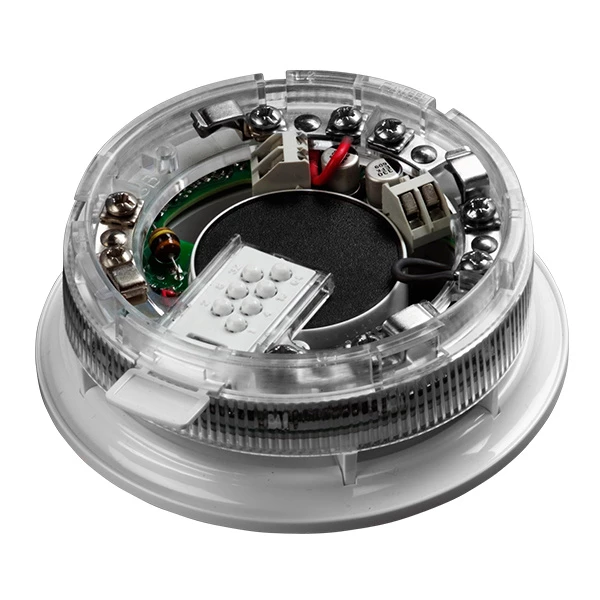

Apollo 45681-393 XP95 Discovery Isolating Multi-tones Sounder Beacon Base 91dB A, Indoor Use, EN54-3 Compliant, White with Red Flash
Original price was: £95.99.£89.99Current price is: £89.99.
Key Features – 45681-393APO
- Individual control of the sounder and visual indicator
- Volume and tone settings selectable from the fire control panel
- Tones can be used for purposes other than fire warning, ideal for schools
- Soft start option, ideal for hospitals and nursing homes
- Electronic bell tone
- 15 tone pairs
- Description
Description
Apollo Discovery Sounder Visual Indicator Base
Part Number: 45681-393APO
The Discovery Sounder Visual Indicator Base uses the Discovery Protocol and is appropriate for use with the entire Discovery detector head range.
For ease of commissioning, a ‘Magnetic Wand’ can be used to test and adjust each sounder locally.
Communication
- Discovery compatible
- XP95 compatible
- CoreProtocol compatible
Product Specification
| Manufacturer: | Apollo |
| Product Code: | 45681-393 |
| Operating Voltage: | 17 – 28V DC (polarity sensitive) |
| Protocol pulses: | 5 – 9V |
| Current Consumption at 24V – Switch-on Surge: | 1.2mA |
| Current Consumption at 24V – Quiescent: | 350µA |
| Current Consumption at 24V – Device operated at maximum volume: | 8mA |
| Maximum sound output at 90°: | 90±3dB(A) Sound pressure level data is published in PIN sheet PP2203 available from Apollo |
| Operating Temperature: | – 20°C to + 60°C |
| Humidity (no condensation or icing): | 0 – 95% |
| IP Rating: | 21D |
