Apollo 55000-295APO XP95 EXD IR2 Flame Detector, Flameproof, ATEX Approved, IP66, XP95/Discovery Compatible, Red
£3,699.95
- Description
Description

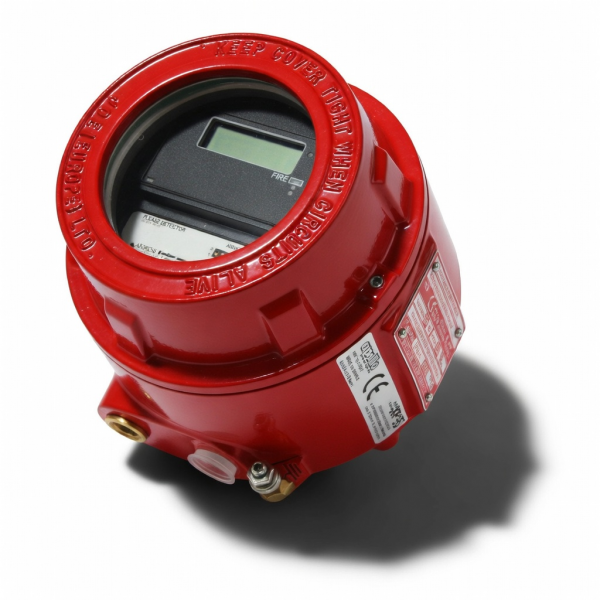

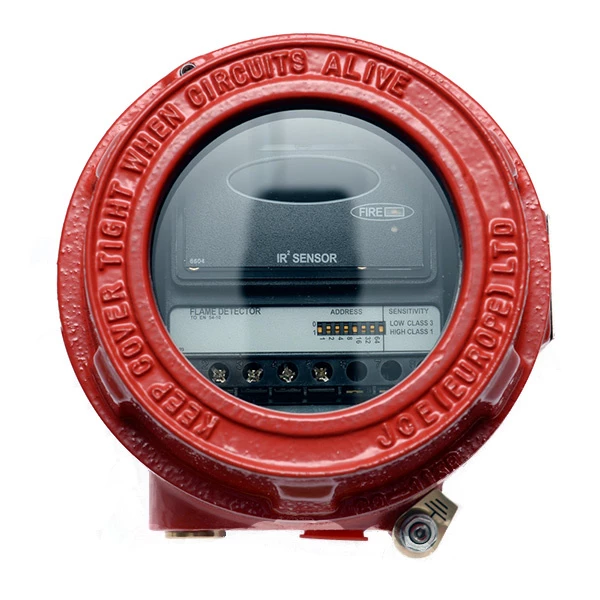

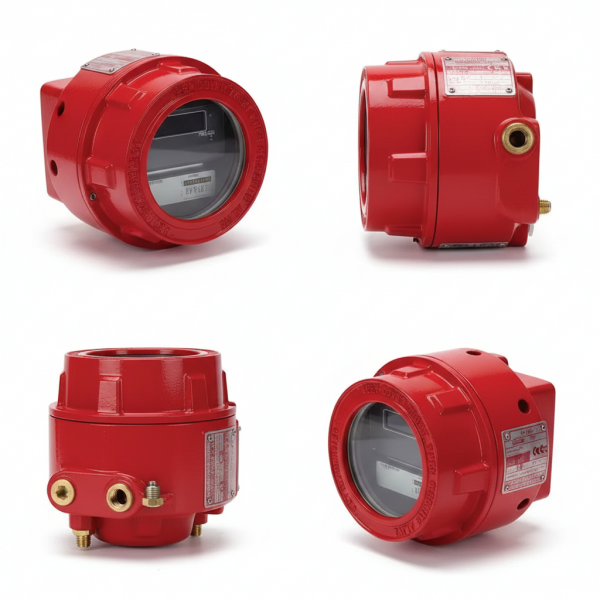

Product Details for Apollo Intelligent Flameproof IR² Flame Detector (55000-295APO)
Operation
The IR² Flameproof Flame Detector is sensitive to low-frequency, flickering infra-red radiation emitted by flames during combustion. Since it responds to flickering radiation the IR² Flame Detector can operate even if the lens is contaminated by a layer of oil, dust, water-vapour or ice.
The IR² Flameproof Flame Detector is set to respond to low-frequency radiation at 1 to 15Hz (1 to 2.7μm) in order to detect all flickering flames, including those invisible to the naked eye, eg, those emitted by hydrogen fires.
The IR² Flameproof Flame Detector has two IR sensors that respond to different IR wavelengths in order to discriminate between flames and spurious sources of radiation. False alarms due to such factors as flickering lighting are avoided by a combination of filters and signal processing techniques
Key Features of the 55000-295APO |
|---|
| > Sensitive to flickering IR radiation > Detects through films of oil, dust, water and ice > Responds to flickering flames, including those invisible to the naked eye > Compatible with Discovery and XP95 protocols > Remote optical self-test function > 90° field of view > Up to 40m coverage > IP66 rated |
