EMS FCX-500-444-V3 Four Loop Wireless Radio HUB with Remote Aerial Facility
Original price was: £499.99.£449.99Current price is: £449.99.

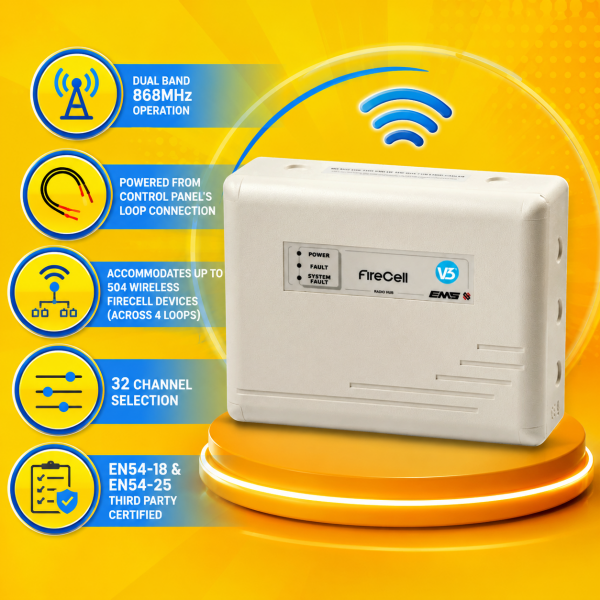

Key Features – FCX-500-444-V3
- XP95 loop powered
- Up to 31 Radio Cluster Communicators
- With remote aerial facility
- Dual band 868MHz operation
- Powered from Control Panel’s loop connection
- Accommodates up to 504 wireless FireCell bdevices (across 4 loops)
- 32 channel selection
- EN54-18 & EN54-25 third party certified
- Description
Description

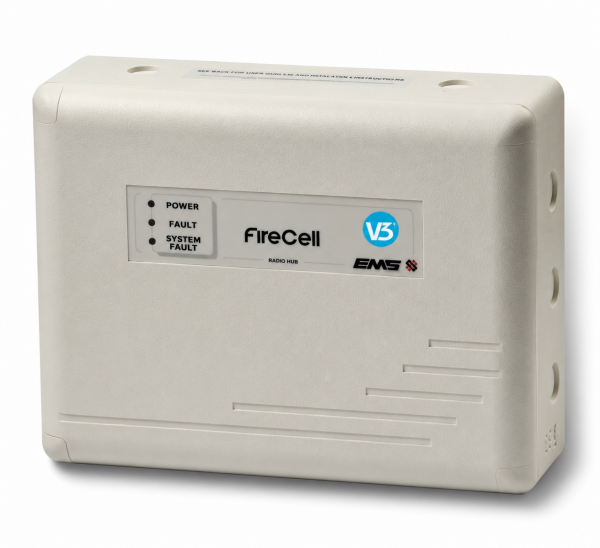

EMS FireCell 4 Loop Wireless Radio Hub with Remote Aerial Facility (V3)
Part Number: FCX-500-444-V3
The EMS FireCell FCX-500-444-V3 Radio Hub connects to the XP95 loop of the FireCell Fire Control Panel and works with FireCell Radio Cluster Communicators (RCCs) to create a wireless infrastructure that can support up to 504 FireCell devices.
This EN certified third-party approved device combines:
- Diversity aerial methodology
- Smart Cluster Technology
- 32 channel selection
for fast and reliable wireless communication.
Product Specification
| Dimensions: | W:270mm x H:205mm x D:85mm |
| Operating frequency: | 868 MHz |
| Output transmitter power: | 0 to 14dBm (0 to 25mW) |
| IP Rating: | IP54, indoor use only |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 – 95% non-condensing |
| Operating voltage: | 17 – 28V dc |
| Operating Current: (typical) | 24mA @ 24V dc (1st loop) +7mA per each connected loop |
| Location: | Type A : for indoor use |
| Weight: | 0.95 kg |
| Certification (3rd party): | EN54-18 & EN54-25 |
