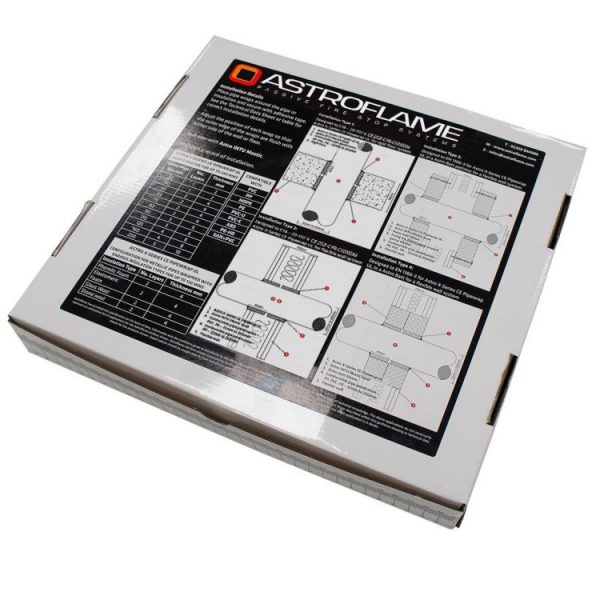

Astroflame AFIPWX/CE Pipe Wrap – 25m Intumescent Fire Seal for PVC, PP, HDPE & PE Pipes

Description

Astroflame AFIPWX/CE Pipe Wrap UL – Intumescent Firestop for Pipe Penetrations

The Astro X Series CE Pipe Wrap UL is a compact, high-performance firestop solution designed to seal pipe penetrations through walls and floors. Whether you’re working with PVC, PE, HDPE, or PP pipes, this wrap ensures critical fire protection in line with modern building safety requirements.

Thanks to its advanced intumescent graphite technology, the wrap expands under heat to create a high-pressure seal that prevents the spread of fire and smoke. Its slim profile makes it perfect for tight installation spaces, while still delivering a powerful firestop barrier rated up to EI120 (2 hours) according to EN1366-3 standards.

Compatible with both plastic and metal pipe types—whether insulated or uninsulated—the Astro X Series Pipe Wrap UL is suitable for use in a variety of construction types, including flexible and rigid walls, rigid floors, and batt systems.

Key Features:

• High-Performance Fire Protection – Delivers up to 2 hours fire resistance (EI120) for pipe penetrations.
• Advanced Intumescent Technology – Expands rapidly when exposed to heat, sealing gaps and blocking fire/smoke.
• Ultra-Slim Design – Ideal for installations in tight spaces or congested service areas.
• Wide Compatibility – Suitable for PVC, PE, HDPE, PP pipes, and pipes with insulation.
• Versatile Installation – Works in flexible walls, rigid walls, rigid floors, and batt systems.
• Large Diameter Coverage – Accommodates pipe sizes up to 200mm.
• End-Capping Tested – Certified for use with unconnected (U/C) pipes and capped-end applications.
• Easy to Apply – Wrap around pipe and apply in multiple passes as needed for wall or floor penetration sealing.

Product Availability

Supplied in 25m rolls.
