C-Tec BF460A/CX/W Addressable Base VAD Beacon, C-3-8 Coverage, EN54-23/17 Certified, Loop Isolator, White

£54.99

Availability: Available on back-order SKU: BF460A/CX/W Categories: Fire Alarm Systems, Smoke & Heat Detectors

Description

Description

Product Overview

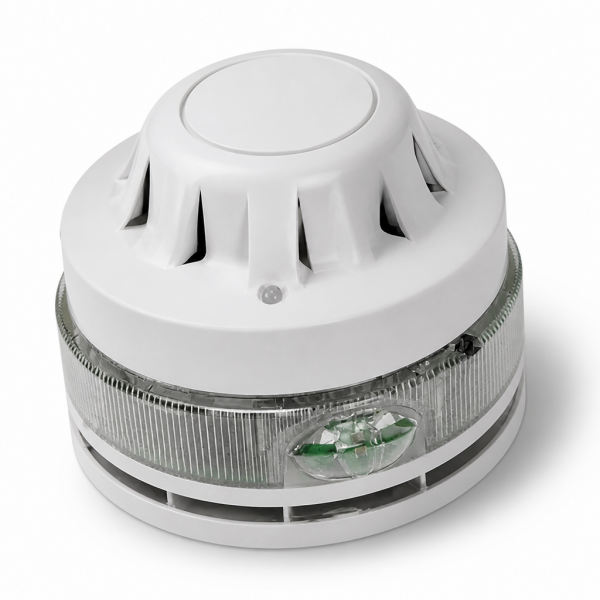

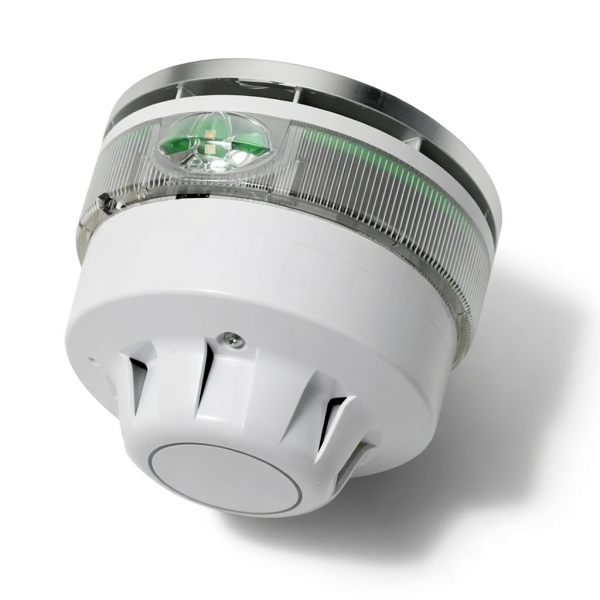

The C-Tec BF460A/CX/W Addressable VAD Beacon Base is designed for optimal fire safety. This beacon base features a sleek white body and a clear lens, ensuring visibility and compliance with safety standards. Certified to EN54-23 and EN54-17 by LPCB, it provides a C-3-8 light distribution, effectively illuminating a cylindrical area. The product is equipped with a quick-connect plate and detector spur wires for easy installation, along with an onboard short-circuit loop isolator for enhanced safety with group addressing capabilities, multiple devices can operate simultaneously. An optional cap allows for stand-alone use, and its IP21C rating ensures durability. Enhance your fire safety system today.

Main Features

Third-party certified to EN54-23 (VADs) and 17 (Isolators) by the LPCB.

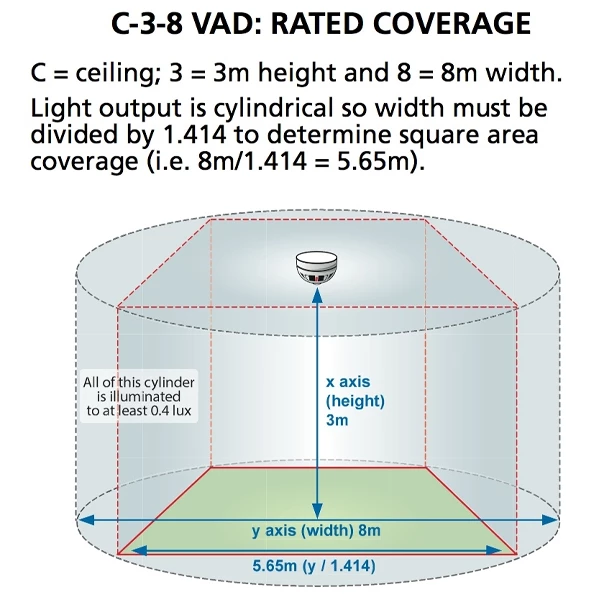

Provides ‘C-3-8’ light distribution (min 0.4 lux over a 3 x 8m cylindrical area).
Supplied with a BF431QCP quick connect plate and detector spur wires.
Onboard short-circuit loop isolator.
550µA quiescent current.
10mA alarm current at24V DC.
Group addressing facility allows multiple devices to be operated simultaneously.
Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
IP21C rated
