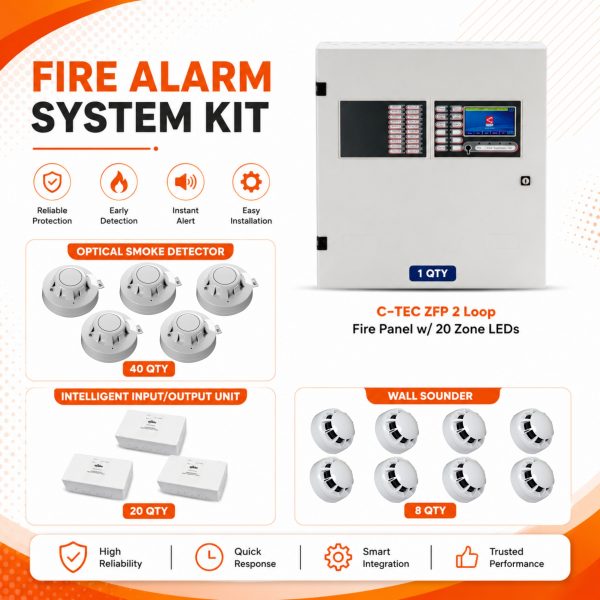

Complete Addressable Fire Alarm Kit

A professional fire alarm system package featuring a C-TEC ZFP 2 loop control panel, Apollo detection devices, addressable input/output units and C-TEC wall sounders. Suitable for commercial and residential fire alarm installations where reliable addressable detection and clear alarm indication are required.

C-TEC ZFP 2 Loop Fire Panel with 20 Zone LEDs

Model: ZFP2/20/X

A 2-loop addressable touchscreen fire alarm control panel compatible with Apollo and Hochiki protocol systems. Supplied in a standard enclosure with a 20-zone LED indicator module fitted. Designed and built in the UK, the panel is suitable for smaller one out, all out systems through to larger multi-loop networked installations with advanced cause and effect programming.

Key Features

• Rapid loop learn
• Flexible cause and effect programming
• Powerful system diagnostics
• Fault-tolerant RS485 networking option
• Supports up to 128 network nodes
• Optional A-Bus expansion, paging and graphic interface facilities
• Intuitive PC programming tools

Apollo Intelligent Input/Output Unit

Model: SA4700-102APO

Provides supervision of one or more normally open contacts connected to a single pair of cables and a set of changeover relay output contacts. Supplied in a faceplate-style enclosure suitable for surface mounting with the supplied back-box or flush mounting using a UK double gang flush mounting back-box.

Key Features

• Improved design for easier wiring
• Faster installation
• Backward compatible with XP95, Discovery and CoreProtocol
• Suitable for monitored inputs and controlled outputs

C-TEC Compact 91dB Wall Sounder, White

Model: BF450A/CX/SW

A compact addressable loop-powered wall sounder in white, compatible with XP95 and Discovery protocol systems. Designed for use with C-TEC XFP and ZFP panels as well as other Apollo Discovery compatible panels. Suitable for indoor use where an audible fire alarm warning is required.

Key Features

• 91dB(A) sound output at 1 metre
• Onboard short-circuit loop isolator
• 550µA quiescent current
• 5mA alarm current at 24V DC
• Group addressing facility
• 7 selectable volume levels
• Up to 15 selectable tone pairs
• IP21C rated

Apollo XP95 Optical Smoke Detector

Model: 55000-600APO

An optical smoke detector using an internal pulsing infrared LED and photo-diode arrangement. When smoke enters the chamber, light is scattered onto the photo-diode and the detector signal increases proportionally. The indicator LED emits red light when the detector is in alarm.

Key Features

• Responds well to slow-burning, smouldering fires
• Suitable for bedrooms and escape routes
• Unaffected by wind or atmospheric pressure
• Alarm flag for fast alarm reporting
• Alarm address for fast location of alarm
• XPERT 7 card addressing
• Electronics-free base, sold separately
• Easy installation
• Elegant design

Professional Fire Alarm System Components

This kit brings together trusted C-TEC and Apollo addressable fire alarm equipment for installers and contractors requiring a reliable, scalable and compliant fire alarm solution.
