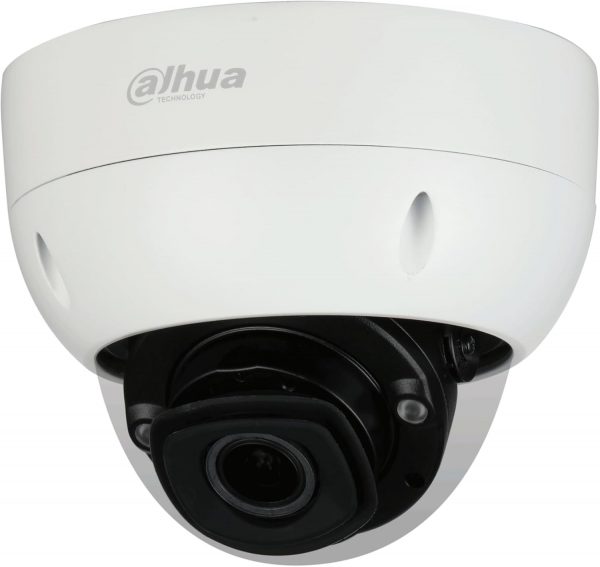

Dahua DH-IPC-HDBW5242RP-ASE-MF 2MP AI Dome Camera, 50m IR, IP67, IK10, PoE, 3.6mm Fixed Lens

£228.80

Availability: 5 in stock Category: Brand:

Features

· 1/1.8” 2Megapixel progressive scan CMOS
· H.265 & H.264 triple-stream encoding
· 50/60 fps@1080P(1920 × 1080)
· WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
· 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
· 1/1 Alarm in/out, 1/1 audio in/out
· Max. IR LEDs Length 50 m
· Micro SD memory, IP67, IK10

Description

Dahua Pro AI Series – Advanced AI-Powered Surveillance Camera

The Dahua Pro AI Series integrates cutting-edge Artificial Intelligence (AI) technology with Face Detection, Perimeter Protection, and People Counting functions. Powered by deep-learning algorithms, it significantly enhances detection accuracy while minimizing false alarms. The series also features starlight imaging, smart IR technology, and enhanced durability for optimal security monitoring in any environment.

Key Features

  • Face Detection

    • Automatically detects and captures faces in real-time video using deep-learning algorithms.

    • Trained on extensive datasets for fast and accurate face recognition, making identification more efficient.

  • Perimeter Protection

    • Advanced AI technology reduces false alarms by identifying object types such as people or vehicles.

    • Allows you to set up custom tripwires to monitor restricted areas, enhancing security and surveillance efficiency.

  • People Counting

    • Uses smart image processing and AI to track the number of people entering and exiting a space.

    • Provides real-time data with up to 95% accuracy—ideal for crowd control and space optimization in retail or public areas.

  • Dahua ePoE Technology

    • Supports long-distance power and data transmission—up to 800 meters at 10Mbps or 300 meters at 100Mbps over Cat5 or coaxial cables.

    • Reduces installation costs by combining power and data in one cable, offering more flexibility in system design.

  • Durability & Protection

    • Wide voltage tolerance (±30%) ensures stable performance even in unstable power conditions.

    • Built-in 6KV surge protection guards against lightning and electrical damage.

    • IP67 rating offers complete protection from dust and water.

    • IK10-rated housing resists vandalism and physical impact—ideal for outdoor or high-risk environments.

Image Sensor1/1.8” 2Megapixel progressive scan CMOS
Effective Pixels1920 (H) × 1080 (V)
RAM/ROM1GB/128 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3 s–1/100000 s
Minimum Illumination 0.002Lux@F1.6,
0Lux with IROn
IR DistanceDistance up to 50 m (164 ft)
IR On/Off ControAuto/Manual
IR LEDs1
Lens TypeFixed-focal
Mount TypeBoard-in
Focal Length2.8 mm, 3.6 mm, 6.0 mm
Max. ApertureF1.6
Angle of ViewH: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31°
Aperture TypeFixed
Close Focus Distance1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8mm41.4m
(135.8ft)
16.6m
(54.5ft)
8.3m
(27.2ft)
4.1m
(13.5ft)
3.6mm51.2m
(168.0ft)
20.5m
(67.3ft)
10.2m
(33.5ft)
5.1m
(16.7ft)
6.0mm80.8m
(265.1ft)
O:32.3m
(106.0ft)
16.2m
(53.1ft)
8.1m
(26.6ft)
Pan/Tilt/Rotation RangePan: 0˚–355˚; Tilt: 0˚–75˚; Rotation: 0˚–355˚
Face DetectionSupport face image capture
Perimeter ProtectionTripwire, intrusion (Recognition of vehicle and
people), fast moving, loitering detection, parking
detection and people gathering
People CountingSupport Line crossing/Region/Queueing people
counting; Support 4 accesses independent
detection, 4 areas independent detection
Event TriggerMotion detection, Video tampering , Scene
changing, Network disconnection , IP address
conflict, Illegal Access,Storage anomaly
General IntelligenceObject Abandoned/Missing
Heat MapYes
CompressionH.265,H.264,H.264B,H.264H,
MJPEG (sub stream)
Smart CodecYes
Streaming Capability3 Streams
Audio Interface1/1 channel In/Out
RS485N/A
Alarm1 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC
Power SupplyDC 12V (±30%), PoE (802.3af) (Class 0)
Power Consumption<6.1W
Operating Conditions40° C to +60° C (-40° F to +140° F)/Less than 95%
RH
Storage conditions40° C to +60° C (-40° F to +140° F)
Ingress ProtectionIP67
Vandal ResistanceIK10
CasingMetal
DimensionsΦ122.0 mm × 88.9 mm (4.80” × 3.50”)
Net Weight0.47 kg (1.04 lb)
Gross Weight0.63 kg (1.39 lb)
Resolution1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280
× 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/
CIF (352 × 288/352 × 240)
Frame RateMain Stream: 1920 × 1080 (1 fps–50/60 fps)
Sub Stream: D1 (1 fps–25/30 fps)
D1 (1 fps–50/60 fps)
Third Stream: 1080P (1 fps–16 fps)
Bit Rate ControlCBR/VBR
Bit RateH.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
Day/NightAuto(ICR)/Color/B/W
BLC ModeBLC/HLC/WDR (140 dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff/On (4 Zone, Rectangle)
Region of InterestOff/On (4 Zone)
Electronic Image Stabilization (EIS)N/A
Smart IRYes
DefogYes
Flip0°/90°/180°/270°
MirrorOff/On
Privacy MaskingOff/On (4 Area, Rectangle)
CompressionG.711a, G.711Mu, G.726, AAC, G.723
EthernetRJ-45 (10/100 Base-T)
ProtocolIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP
;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP
;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
InteroperabilityONVIF (Profile S/Profile G/Profile T), CGI,
Milestone, Genetec, P2P
Streaming MethodUnicast/Multicast
Max. User Access20 Users
Edge StorageNAS;FTP;SFTP
Micro SD card (support max. 256 G)
Web ViewerIE (versions newer than IE8), Chrome,
Firefox, Safari (versions newer than Safari12)
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneiOS, Android
SecurityIP Filter, User Authentication, Port Security
CertificationsCE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
