DAKEA AOV Smoke Vent Roof Window 114 x 118cm for Pitched Roofs with Universal Slate & Tile Flashing
Original price was: £1,571.04.£1,099.72Current price is: £1,099.72.

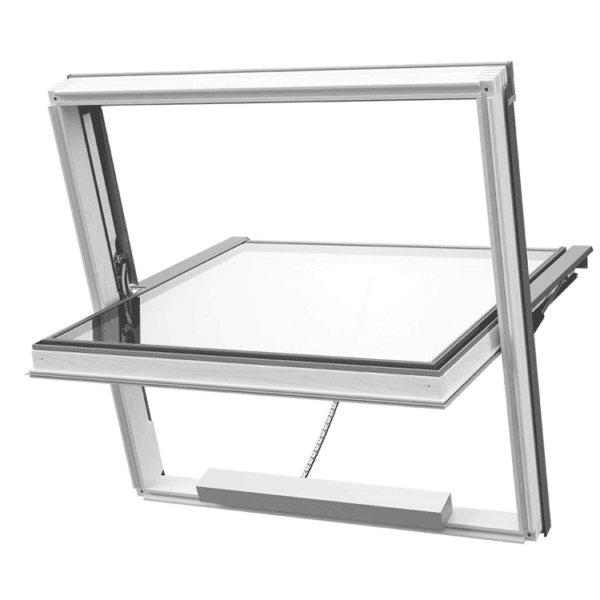

The DAKEA KAS S6A B1010 Automatic Opening Smoke Vent (AOV) is a motorised smoke ventilation roof window designed for pitched roofs between 15° and 60°.
Supplied with the DAKEA KUF S6A Universal Flashing Kit, this 114 × 118 cm roof window is suitable for installation with compatible slate, tile and profiled roofing materials.
Key Features:
- Tested and certified to EN 12101-2.
- Motorised opening with gas-strut assistance.
- Opens fully within 60 seconds of receiving an emergency activation signal.
- Suitable for pitched roofs between 15° and 60°.
- Universal flashing kit included.
- White-painted timber frame with grey aluminium external cladding.
- Toughened outer glass and laminated internal safety glass.
- 1.18 m² geometrical opening area.

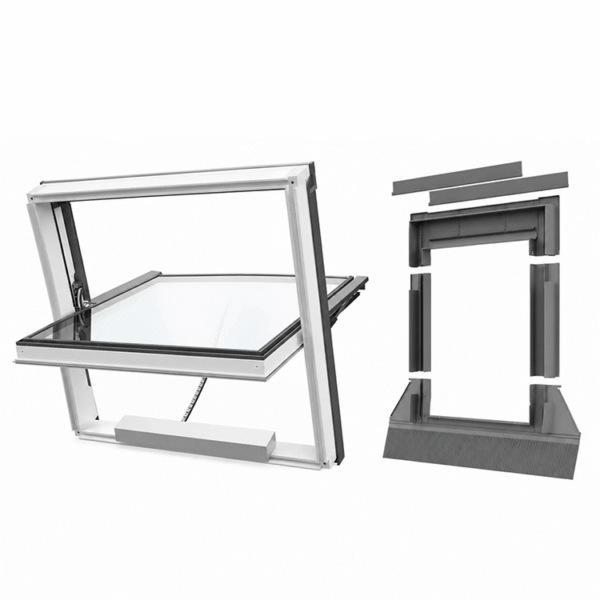

Package includes: DAKEA smoke ventilation roof window and matching universal flashing kit.
Please note: A compatible smoke ventilation control system is required and is not included.
More Products from This Brand
Product Description
- Description
- Additional information
- Reviews (0)
- What Is Included?
- Important Installation Information
Description
DAKEA Automatic Opening Smoke Vent Roof Window with Universal Flashing Kit
The DAKEA KAS S6A B1010 Smoke Ventilation Roof Window is designed to provide automatic smoke and heat ventilation in buildings with pitched roofs.
Manufactured to EN 12101-2 requirements, the window uses an electric opening motor and gas-strut assistance to open during a fire emergency when activated by a compatible smoke ventilation control system.
This package includes the matching DAKEA KUF S6A Universal Flashing Kit, providing a practical installation solution for compatible slate, tile and profiled roof coverings.
With its 114 × 118 cm nominal dimensions, insulated safety glazing and white-painted timber frame, the window combines smoke ventilation functionality with the appearance of a conventional pitched roof window.
Automatic Smoke Ventilation
The DAKEA KAS window is designed to operate as part of a smoke and heat control system.
When connected to compatible control equipment, the window can respond to activation signals from smoke detectors or manual fire alarm points.
The pre-installed electric motor and gas struts open the window to its maximum position within 60 seconds of receiving the appropriate activation signal.
This allows smoke and hot gases to escape through the roof as part of a correctly designed smoke ventilation system.
Universal Slate and Tile Flashing Included
The package includes the genuine DAKEA KUF S6A Universal Flashing Kit.
The flashing provides the external weatherproofing connection between the roof window and compatible roofing materials.
It is suitable for a range of roof coverings, including:
- Flat slate roofing.
- Concrete and clay roof tiles.
- High-profile roof tiles.
- Pantiles.
- Compatible corrugated roofing sheets.
The universal flashing is designed for high-profile roofing materials between 16 mm and 120 mm. Compatibility with individual slate products and other roof coverings must be checked before installation.
The flashing includes an extended pleated aluminium apron to accommodate different roofing profiles.
Designed for Pitched Roofs
The DAKEA smoke ventilation window is suitable for roof pitches between 15° and 60°.
It can be installed in suitable pitched-roof buildings, including communal stairwells, offices and other locations where a smoke ventilation window forms part of the building’s fire safety design.
The window is not designed for use as a roof access or escape window.
Window Construction and Performance
The DAKEA KAS S6A B1010 incorporates several features designed to support durability, thermal performance and safe operation.
Window and Frame
- White-painted laminated pine timber frame.
- External aluminium cladding in grey RAL 7043.
- Centre-pivot opening arrangement.
- Pre-installed electric opening motor.
- Gas-strut-assisted opening.
- Double gasket system between the frame and sash.
Glazing
- 24 mm insulated glazing unit.
- Toughened external safety glass.
- Laminated internal safety glass.
- Argon-filled glazing cavity.
- Double low-emissivity coating.
- Window thermal transmittance (Uw): 1.3 W/m²K.
- Glass thermal transmittance (Ug): 1.0 W/m²K.
Smoke Ventilation Opening Area
The DAKEA KAS S6A window has a manufacturer-declared geometrical opening area of 1.18 m².
This measurement is different from the aerodynamic free area used in certain smoke ventilation designs.
When fitted with the compatible optional DAKEA KWU wind deflector, the manufacturer specifies an aerodynamic free area of 0.54 m².
The suitability of the window must be assessed against the smoke ventilation requirements of the building.
Additional information
| Weight | 70 kg |
|---|
Be the first to review “DAKEA AOV Smoke Vent Roof Window 114 x 118cm for Pitched Roofs with Universal Slate & Tile Flashing”
The package contains:
1 × DAKEA KAS S6A B1010 Smoke Ventilation Roof Window
- Nominal dimensions: 114 × 118 cm.
- White-painted timber frame.
- Integrated opening motor.
- Gas-strut opening assistance.
- Insulated safety glazing.
1 × DAKEA KUF S6A Universal Flashing Kit
- Upper flashing element.
- Two side flashing elements.
- Lower flashing element with extended aluminium apron.
- Drainage gutter.
The window requires a compatible smoke ventilation control system to operate automatically.
The smoke ventilation control panel, smoke detectors, manual activation points and optional KWU wind deflector are not included in this package.
Installation must be completed in accordance with the manufacturer’s instructions and the applicable building and fire safety requirements.
Before ordering, confirm that the window dimensions, roof pitch, roofing material and required smoke ventilation opening area are suitable for the intended installation.
