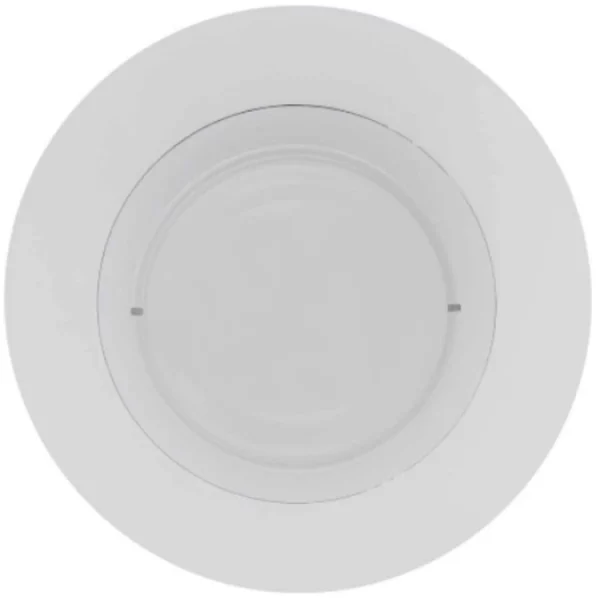

NOTIFIER FPTI-951 Intelligent Multi-Criteria Smoke & Heat Detector – Photo, Thermal, IR, FlashScan
£67.86
The NOTIFIER FPTI-951 is a smart addressable smoke and heat detector that combines photoelectric, thermal, and infrared sensing to reduce false alarms and enhance fire detection. Ideal for areas prone to nuisance triggers.
- Description
- Additional information
- Technical Specification
Description
The NOTIFIER FPTI-951 Multi-Criteria Detector is a state-of-the-art, addressable fire detection solution designed to deliver reliable performance while significantly reducing false alarms. Replacing the legacy FAPT-851 Series, this detector combines photoelectric, thermal (135°F fixed and rate-of-rise), and infrared (IR) sensing technologies into a single unit, making it highly effective at distinguishing between real fire threats and non-hazardous environmental changes.
By integrating three sensor types with intelligent algorithms, the FPTI-951 enhances detection accuracy and speed while remaining highly resistant to nuisance sources such as dust, steam, or theatrical smoke. This makes it an ideal solution for environments like commercial buildings, entertainment venues, or multi-tenant spaces where false alarms can be disruptive or costly.
The detector supports FlashScan® and CLIP protocols, features rotary decimal addressing, and offers dual LED indicators for 360° visibility. With low standby current, a modern, low-profile design, and compliance with UL 268 7th Edition and UL 521, it meets the latest code requirements for fire safety and system compatibility.
Whether you’re upgrading an existing system or planning a new fire alarm installation, the FPTI-951 provides unmatched reliability, performance, and compatibility with NOTIFIER’s intelligent fire alarm panels.
Additional information
| Manufacturer | Honeywell International |
|---|---|
| Brand | Notifier |
| Weight | 0.4 lbs |
| Dimensions | 2.00 × 4.00 × 4.00 in |
| Programming | Rotary Dials |
| Detection Method | Fixed Temperature, Photoelectric, Rate-of-Rise |
| PHYSICAL | |
| Height: | 2.0″ (51 mm) installed in B300(A)-6 base |
| Diameter | 6.2″ (156 mm) installed in B300(A)-6 base; 4.1″ (104 mm) installed in B501-WHITE/-IV/-BL base |
| Operating Humidity Range | 15% to 90% Relative Humidity, Noncondensing |
| Operating Temperature Range | 32°F to 100°F (0°C to 38°C) |
| Air Velocity | 0 to 300 ft./min. (0 to 91.4 m/min.) |
| Operating Voltage Range | 15 to 32 VDC |
| Operating Current | 24 VDC: 200 uA (one communication every 5 seconds with green LED blink on communication |
| Maximum Alarm Current | 2 mA @ 24 VDC (one communication every 5 seconds with red LED solid on) |
| Maximum Current | 4.5 mA @ 24 VDC (one communication every 5 seconds with amber LED solid on) |
| Isolator Load Rating | 0.0063 |
