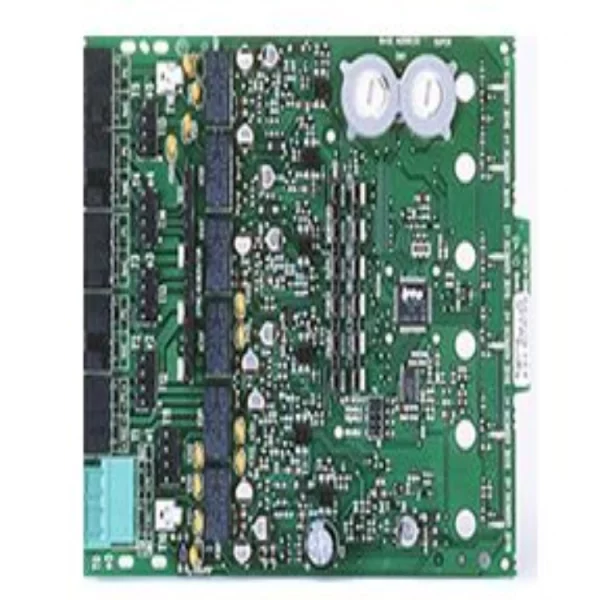

Notifier XP6-MA Six-Zone Addressable Interface Module – 2-Wire Zone Control

Description

The Notifier XP6-MA Six-Zone Interface Module is a high-performance addressable device that enables intelligent fire alarm systems to monitor and control up to six zones of conventional two-wire smoke detectors. Designed for seamless integration with Notifier fire alarm control panels, the XP6-MA is ideal for retrofit projects and hybrid detection systems where legacy devices must be incorporated into an addressable system.

Each XP6-MA module operates using a common Signaling Line Circuit (SLC) input while supporting independent operation for each of the six initiating device circuits (IDCs). These IDCs can be configured as six Class B (Style B) circuits or three Class A (Style D) circuits, offering deployment flexibility for various wiring environments.

Equipped with rotary address switches and individual status LEDs for each circuit, the XP6-MA ensures quick setup, easy troubleshooting, and real-time feedback. It supports both FlashScan® and CLIP communication protocols, ensuring compatibility with a wide range of Notifier systems.

Key Features:

• Supports six Class B or three Class A two-wire detection zones
• Transmits real-time status: normal, alarm, or open fault
• Shares a common SLC input with individual zone supervision
• Built-in status indicators for each IDC
• Accepts 12 to 18 AWG wire via removable plug-in terminal blocks
• Up to two unused IDC addresses can be disabled if not needed
• Rotary address switches simplify device programming
• Fully compatible with FlashScan® and CLIP protocols
• Mountable in BB-XP, BB-25, CHS-6, and CAB series enclosures

The Notifier XP6-MA is the ideal solution for hybrid fire alarm system configurations, offering reliable integration of legacy two-wire zones with modern addressable system architectures.
