Description

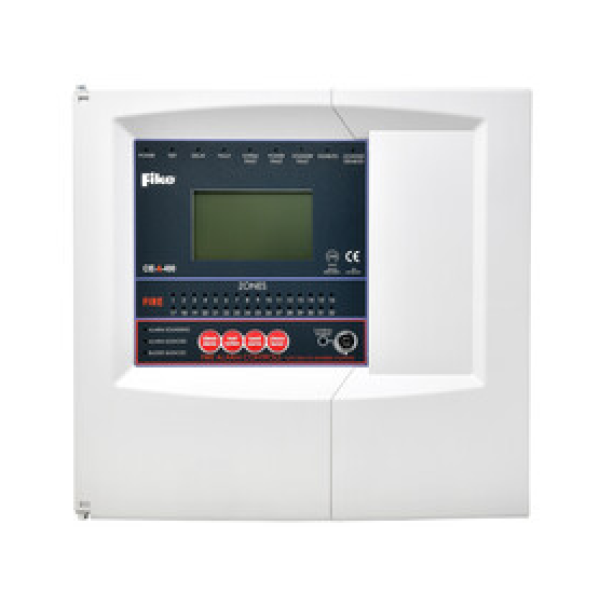

Fike 540-0001 CIE-A-400 Single Loop Addressable Panel (Expandable to Two Loops)

Short Description

The Fike 540-0001 CIE-A-400 is a single loop addressable fire alarm control panel, expandable to two loops. It supports up to 200 devices per loop and up to 2km of loop length, making it ideal for medium to large installations.

Long Description

The Fike CIE-A-400 panel is a flexible, high-performance addressable fire alarm control unit designed for commercial and industrial applications. While it comes as a single loop panel, it can be expanded to support a second loop using an additional loop card. Each loop can manage up to 200 addressable devices, including up to 100 sounders at 85 dB, over a maximum loop length of 2km.

Equipped with configurable monitored input and output circuits, relays, and a fault relay, the panel ensures comprehensive fire detection and system control. Its peripheral bus circuit allows connection of up to 8 repeater panels for extended monitoring coverage. The panel also supports 3 alarm stages, full ‘Zone-to-Zone’ Cause and Effect programming, alarm confirmation, delay timers, and an additional 32 output zones for complex programming requirements.

Soft addressing simplifies installation by eliminating manual addressing at each device, ensuring fast and reliable communication across all connected detectors. Configuration can be done via the panel or Fike’s OSP programming software and stored in device flash memory. The intuitive LCD graphical interface, combined with enhanced service and fault-finding tools, ensures easy operation and maintenance.

Key Features

• Supports Fike ASD addressable devices
• Expandable from 1 loop to 2 loops
• Supports up to 200 devices per loop
• Maximum loop length: 2 km
• Peripheral bus circuit for up to 8 repeater panels
• Configurable monitored input and output circuits, relays, and fault relay
• 3 alarm stages and comprehensive ‘Zone-to-Zone’ programming
• Alarm confirmation and delay timers
• 32 additional output zones for complex programming
• Soft addressing for simplified installation and faster communication
• Intuitive LCD graphical user display
• Enhanced service and fault-finding tools

Applications

• Medium to large commercial buildings
• Industrial facilities
• Educational institutions
• Healthcare buildings and hospitals
• Any installation requiring expandable addressable fire detection

Specifications
